Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XY-axis

Manual Linear Positioning Stage Picture

MC2D-40 manual, dovetail, rack and pinion, XY-axis stages provide precise and accurate micrometer driven XY-axis adjustment of a top platform.

These manual XY-axis dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 by 40 mm and have a body weight of 0.37.

The maximum load of these feed screw tables is 2.8 kg.

The stroke is +/- 10 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.


Unit: mm
Part No.. Table
Movement accuracy
Load Capacity
Material Surface
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading


40 by 40 20 micron 2.8 0.37 Aluminum Alloy Black anodized +/- 10 20 0.1mm/indicator

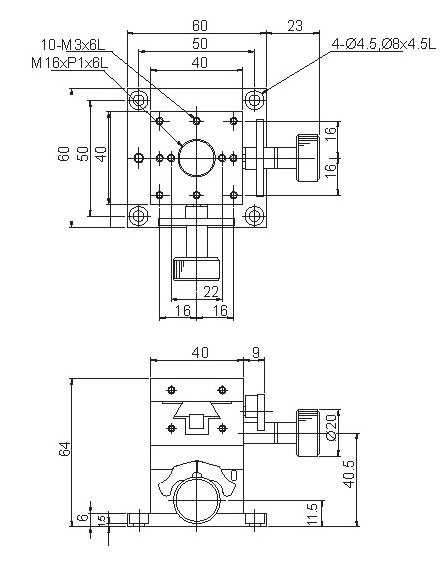

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MC2D-40 Manual Stage, Dovetail Stage, Rack and Pinion XY-axis, Range of Travel +/-10 Click to Get a Quote
