Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XY-axis

Manual Linear Positioning Stage Picture


MC2D-60 manual, dovetail, rack and pinion, XY-axis stages provide precise and accurate micrometer driven XY-axis adjustment of a top platform.

These manual XY-axis dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 60 X 60 mm and have a body weight of 1.19.

The maximum load of these feed screw tables is 3.0 kgf.

The stroke is +/- 20 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm
Model No. Table
Size
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator

 MC2D-60

60 by 60 30 μm 3.0 1.19 Aluminum Alloy Black anodized +/- 20 18 0.1mm/indicator

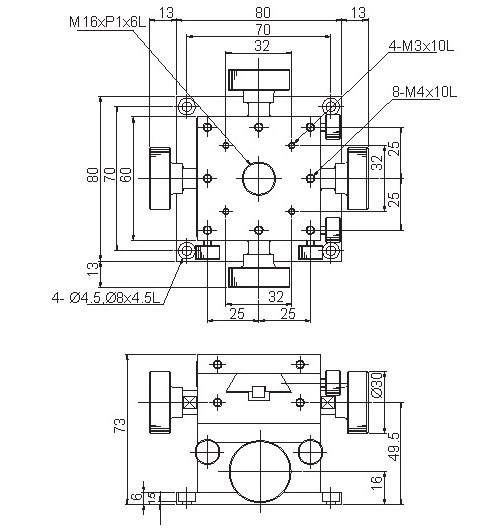

Manual Linear Positioning Stage Mechanical Drawing
MC2D-60

 Ordering Information

Part No. Description Amount
MC2D-60 Manual Stage, Dovetail Stage, Rack and Pinion XY-axis, Range of Travel +/-20 Click to Get a Quote
