Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XY-axis

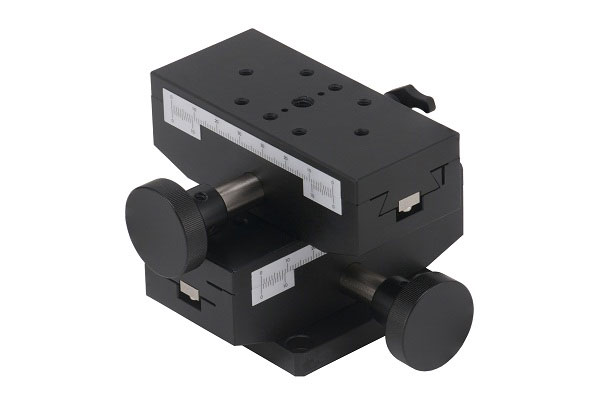

Manual Linear Positioning Stage Picture


MCD-41 manual, dovetail, rack and pinion, XY-axis stages provide precise and accurate micrometer driven XY-axis adjustment of a top platform.

These manual XY-axis dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 x 140 mm and have a body weight of 1.07.

The maximum load of these feed screw tables is 3.5 kgf.

The stroke is +/- 50 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

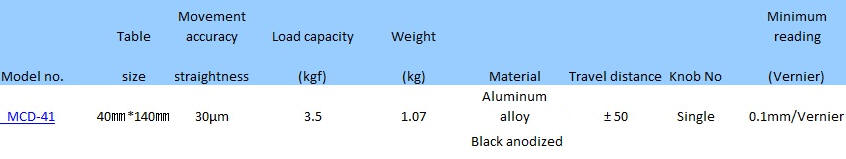

Specifications




Mechanical Drawing


MCD-41

 Ordering Information

Part No. Description Amount
MCD-41 Manual Stage, Dovetail Rack and Pinion Stage XY-Axis 40x140mm Table with 100mm Travel  Click to Get a Quote
