MCD-49 manual, dovetail, rack and pinion, XY-axis stages provide precise and accurate micrometer driven XY-axis adjustment of a top platform.

These manual XY-axis dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 60 X 60 mm and have a body weight of 1.19.

The maximum load of these feed screw tables is 3.0 kgf.

The stroke is +/- 30 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

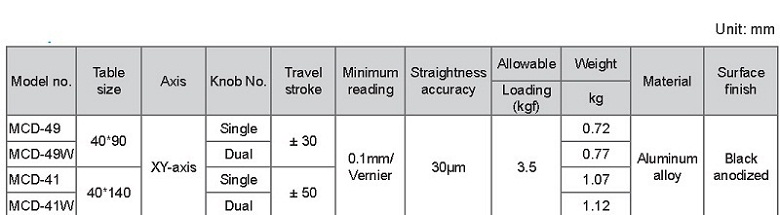

Manual Linear Positioning Stage Spec

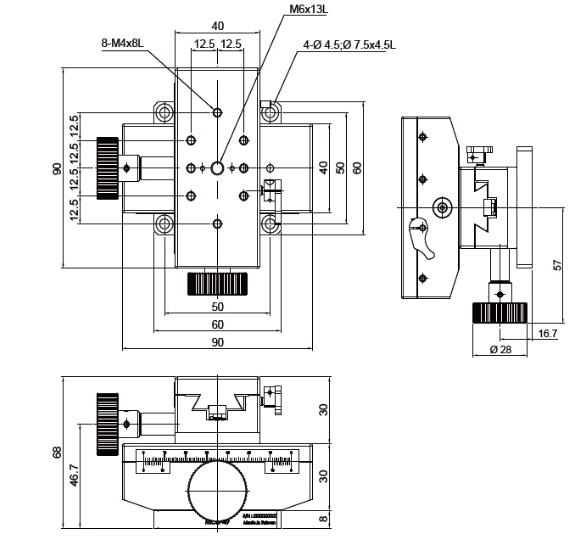

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MCD 49

 Ordering Information

Part No. Description Amount
MCD-49 Manual Stage, Dovetail Stage, Rack and Pinion XY-axis, Range of Travel +/-30 mm Click to Get a Quote
