Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XYZ-axis

Manual Linear Positioning Stage Picture


MCT-44 manual, dovetail, rack and pinion, XYZ-axis stages provide precise and accurate micrometer driven XYZ-axis adjustment of a top platform.

These manual XYZ-axis dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 40 mm and have a body weight of 0.67.

The maximum load of these feed screw tables is 2 kgf.

The distance of travel is +/- 10 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm
Model No. Table
Size
Axis Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Knob No Minimum reading
indicator

 MCT-44

40 by 40 XY+Z axis 30 μm 2 0.67 Aluminum Alloy Black anodized +/-10 mm Single 0.1mm/indicator

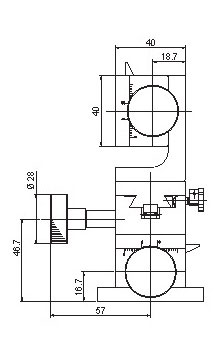

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MCT-44

 Ordering Information

Part No. Description Amount
MCT-44 Manual Stage, Dovetail Stage, Rack and Pinion XYZ-axis, Range of Travel +/-10 Click to Get a Quote
