Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XYZ-axis

Manual Linear Positioning Stage Picture

MCT-46W manual, dovetail, rack and pinion, XYZ-axis stages provide precise and accurate micrometer driven XYZ-axis adjustment of a top platform.

These manual XYZ-axis dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 by 60 mm and have a body weight of 0.98.

The maximum load of these feed screw tables is 2 kgf.

The distance of travel is +/- 15 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.


Unit: mm
Model No. Table
Axis Movement accuracy
Load capacity
Material Surface
Travel Distance Knob No Minimum reading


40 by 60 XY+Z axis 30 μm 2 0.98 Aluminum Alloy Black anodized +/-15 mm Dual 0.1mm/indicator

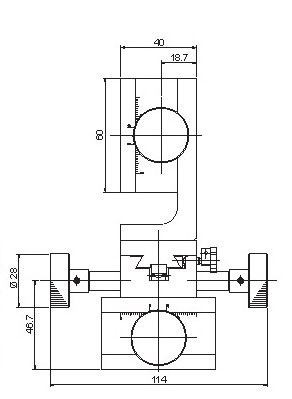

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MCT-46W Manual Stage, Dovetail Stage, Rack and Pinion XYZ-axis, Range of Travel +/-15 Click to Get a Quote
