Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XZ-axis

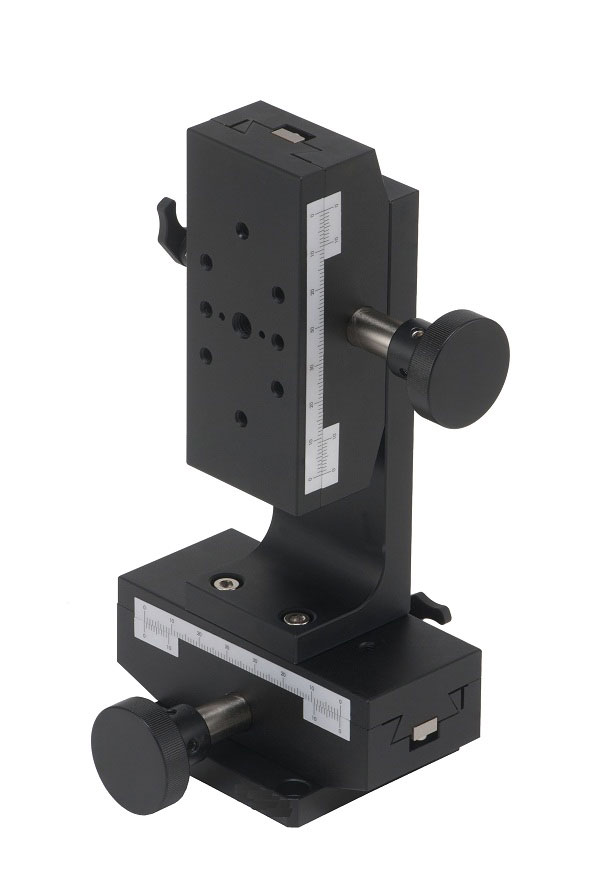

Manual Linear Positioning Stage Picture


MCM-41 manual, dovetail, rack and pinion, X+Z-axis stages provide precise and accurate micrometer driven XZ-axis adjustment of a top platform.

These manual X+Z-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 140 mm and have a body weight of 1.23 Kg.

The distance of travel is +/- 50 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

  Unit: mm
Model No. Table
Size
Axis Movement accuracy
straightness
Load Capacity
(kgf)
Material Surface
finish
Travel Distance Knob No Minimum reading
indicator

 MCM-41

40 mm by 140 mm X+Z axis 30 μm 2.0 Aluminum Alloy Black anodized +/-50 Single 0.1mm/indicator

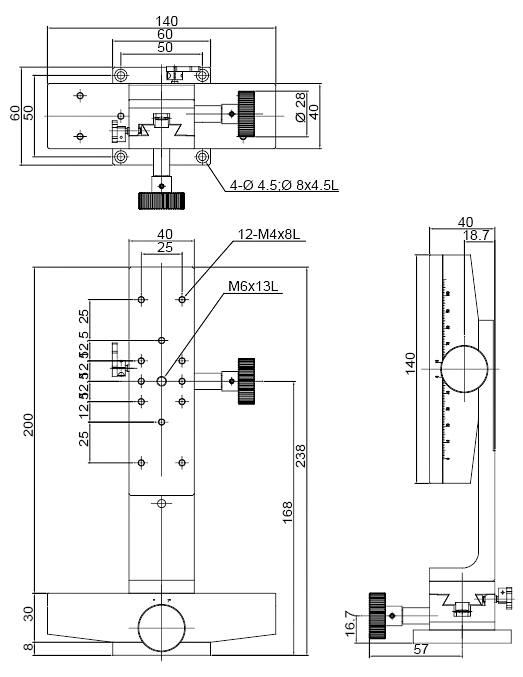

Mechanical Drawing


MCM 41

 Ordering Information

Part No. Description Amount
MCM-41 Manual Stage, Dovetail Stage, Rack and Pinion XZ-axis, Range of Travel +/-50 mm Click to Get a Quote
