Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XZ-axis

Manual Linear Positioning Stage Picture

MCM-49 manual, dovetail, rack and pinion, X+Z-axis stages provide precise and accurate micrometer driven XZ-axis adjustment of a top platform.

These manual X+Z-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 90 mm and have a body weight of 0.87.

The stroke is +/- 30 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.


  Unit: mm
Part No.. Table
Axis Movement accuracy
Material Surface
Travel Distance Knob No Minimum reading


40 mm by 90 mm X+Z axis 30 micron 0.87 Aluminum Alloy Black anodized +/-30 Single 0.1mm/indicator

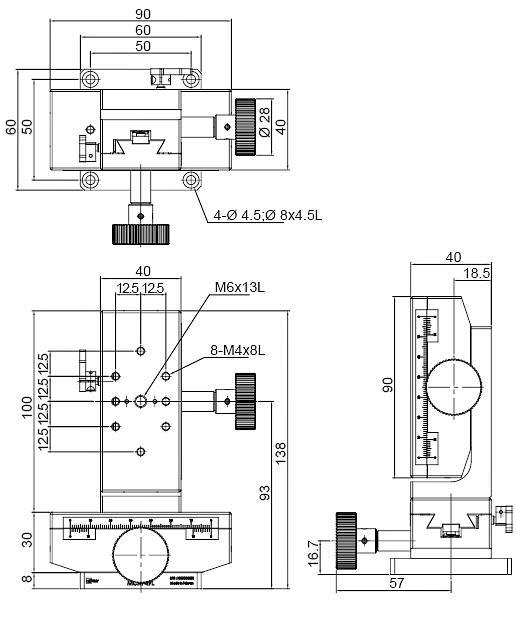

Mechanical Drawing

MCM 49

 Ordering Information

Part No. Description Amount
MCM-49 Manual Stage, Dovetail Stage, Rack and Pinion XZ-axis, Range of Travel +/-30 mm Click to Get a Quote
