Manual Linear Positioning Stage

Manual Stages > Dovetail Stages > Rack and Pinion Z-axis

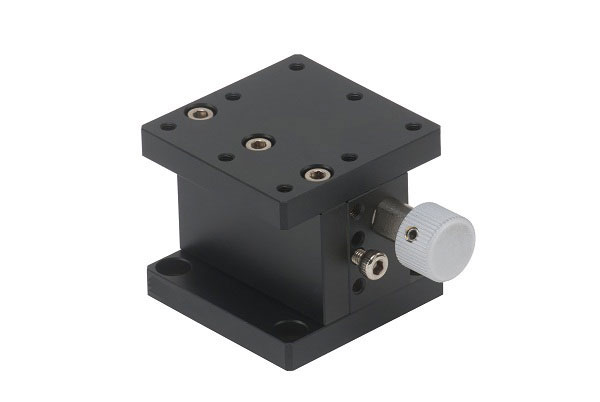

Manual Linear Positioning Stage Picture


MC3B-60 manual, dovetail, rack and pinion, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis dovetail rack and pinion is made of brass alloy with an elegant black fluororesin finished.

The table sizes are 60 by 60 mm and have a body weight of 0.12.

The load capacity is 1.0 kgf.

The distance of travel is +/- 10 mm.

The Travel Distance per Rev. of Knob is ≈18.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm
Model No. Table
Size
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator

 MC3B-25

25 by 25 30 μm 1.0 0.12 Brass alloy Black fluororesin finished +/- 2.5 ≈8 0.1mm/indicator

 MC3B-40

40 by 40 30 μm 1.0 0.12 +/- 5 ≈13

 MC3B-60

60 by 60 30 μm 1.0 0.12 Aluminum Alloy Black anodized +/- 10 ≈18

Mechanical Drawing

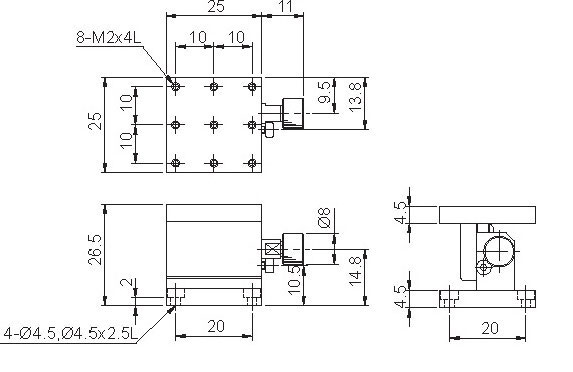

Manual Linear Positioning Stage Mechanical Drawing
MC3B 25

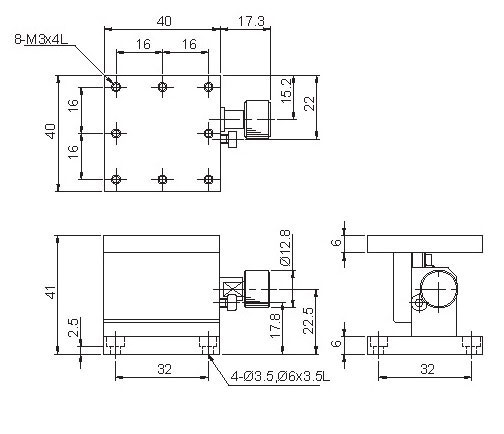

Manual Linear Positioning Stage Mechanical Drawing
MC3B 40

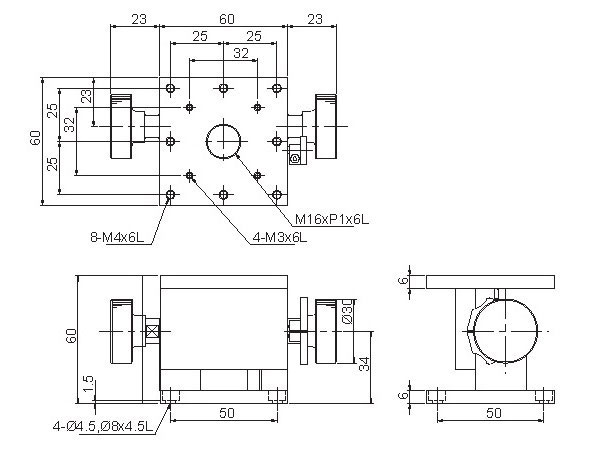

Manual Linear Positioning Stage Mechanical Drawing
MC3B 60

 Ordering Information

Part No. Description Amount
MC3B-25 Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-2.5 Click to Get a Quote
MC3B-40 Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-5 Click to Get a Quote
MC3B-60 Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-10 Click to Get a Quote
