Manual Linear Positioning Stage

Manual Stages > Dovetail Stages > Rack and Pinion Z-axis

Manual Linear Positioning Stage Picture


MC4B-60 manual, dovetail, rack and pinion, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 by 60 mm and have a body weight of 0.33.

The load capacity is 2.0 kgf.

The distance of travel is +/- 21 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Minimum reading
indicator

 MC4B-60

40 by 60 30 μm 2.0 0.33 Aluminum Alloy Black anodized +/-21 0.1mm / indicator

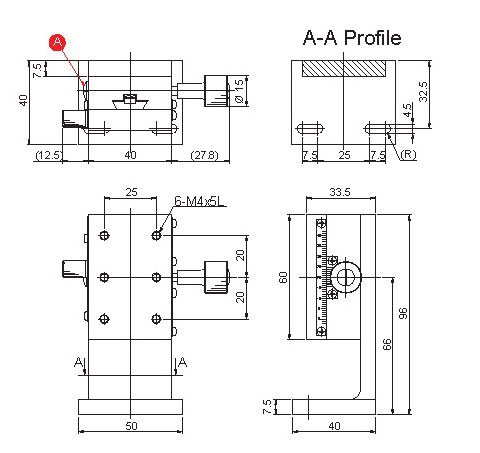

Manual Linear Positioning Stage Mechanical Drawing
MC4B 60

 Ordering Information

Part No. Description Amount
MC4B-60 Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-21 mm Click to Get a Quote
