Manual Linear Positioning Stage

Manual Stages > Dovetail Stages > Rack and Pinion Z-axis

Manual Linear Positioning Stage Picture


MCV-41 manual, dovetail, rack and pinion, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 mm by 140 mm and have a body weight of 0.67.

The load capacity is 2 kgf.

The distance of travel is +/- 50 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Knob No Minimum reading
indicator

  MCV-41

40 mm by 90 mm Z axis 30 μm 2 0.67 Aluminum Alloy Black anodized +/-50 Single 0.1mm/indicator

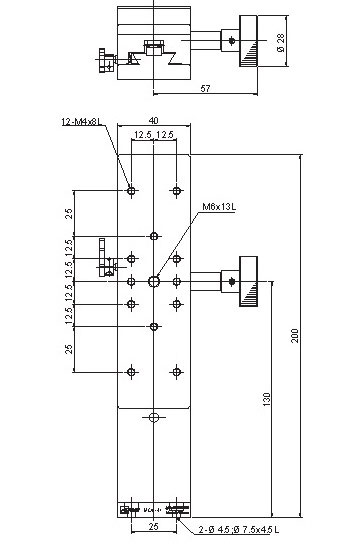

Manual Linear Positioning Stage Mechanical Drawing
MCV 41

 Ordering Information

Part No. Description Amount
MCV-41 Manual Stage, Dovetail Stage, Rack and Pinion XYZ-axis, Range of Travel +/-50 Click to Get a Quote
