Manual Linear Positioning Stage

Manual Stages > Dovetail Stages > Rack and Pinion Z-axis




MCV-44W manual, dovetail, rack and pinion, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 40 mm and have a body weight of 0.28.

The load capacity is 2kgf .

The distance of travel is +/- 10 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Knob No Minimum reading
indicator

 MCV-44W

40 mm by 40 mm Z axis 30 μm 2 0.28 Aluminum Alloy Black anodized +/-10 Dual 0.1mm/indicator

Mechanical Drawing

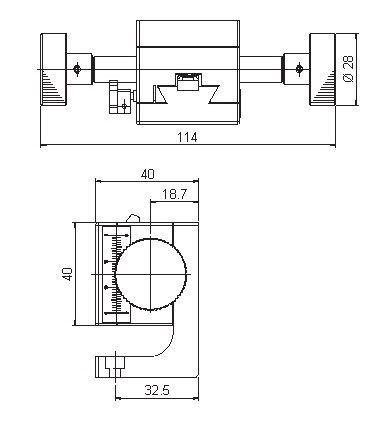

Manual Linear Positioning Stage Mechanical Drawing
MCV-44W

 Ordering Information

Part No. Description Amount
MCV-44W Manual Stage, Dovetail Stage, Rack and Pinion XYZ-axis, Range of Travel +/-10 mm Click to Get a Quote
