Manual Linear Positioning Stage

Manual Stages > Dovetail Stages > Rack and Pinion Z-axis


MCV-46 manual, dovetail, rack and pinion, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 mm by 60 mmand have a body weight of 0.36.

The Load Capacity is 2 kg

The stroke is +/- 15 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

  Unit: mm
Part No.. Table
Axis Movement accuracy
Load Capacity
Material Surface
Travel Distance Knob No Minimum reading


40 mm by 60 mm Z axis 30 micron 2 0.38 Aluminum Alloy Black anodized +/-15 Dual 0.1mm/indicator

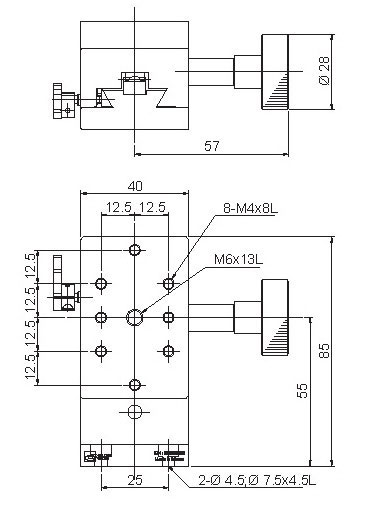

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MCV-46 Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-15 mm Click to Get a Quote
