Manual Linear Positioning Stage

Manual Stages > Dovetail Stages > Rack and Pinion Z-axis




MCV-46L manual, dovetail, rack and pinion, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 mm by 60 mm and have a body weight of 0.33.

The load capacity is 2 kgf.

The distance of travel is +/- 15 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Knob No Minimum reading
indicator

 MCV-46L

40 mm by 60 mm Z axis 30 μm 2 0.35 Aluminum Alloy Black anodized +/-7.5 Dual 0.1mm/indicator

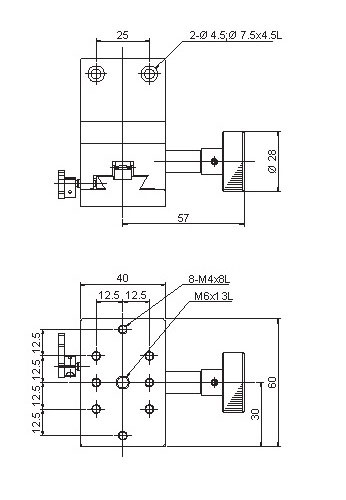

Manual Linear Positioning Stage Mechanical Drawing
MCV-46L

 Ordering Information

Part No. Description Amount
MCV-46L Dovetail Rack and Pinion Stage Z-Axis 40x60mm Table with 15mm Travel Click to Get a Quote
