Manual Alpha-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-axis Goniometer Stages

Manual Alpha-axis Goniometer Stage Picture

MXG3-30CE, single-axis manual goniometers are made of brass alloy with an elegant black fluororesin coating.

The bench size is 30 X 30 mm has a body weight of 0.1 kgf.

The drive mechanism is worm and worm gear. The worm gear ratios is
≈44'39'', per revolution of knob.

It provides +/-8 degrees of rotation.

The maximum load of this goniometer table is 1.5 kgf.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 30 mm.

Specifications
  Unit: mm
Model No. Table
Size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator
Height of
rotational center

 MXG3-30CE

30 by 30 α 1.5 0.1 Brass Alloy Black Fluororesin +/- 8 ≈44'39'' 0.1 / indicator 30

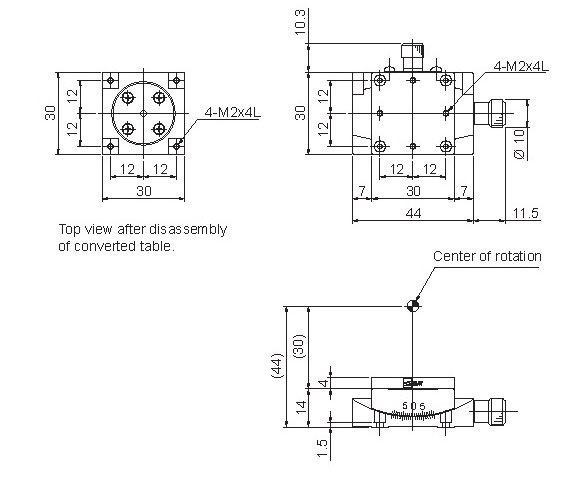

Mechanical Drawing

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MXG3-30CE

 Ordering Information

Part No. Description Amount
MXG3-30CE Manual Alpha-axis Goniometer Stage, Range of Travel +/- 8 Click to Get a Quote
