Manual Alpha-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-axis Goniometer Stages

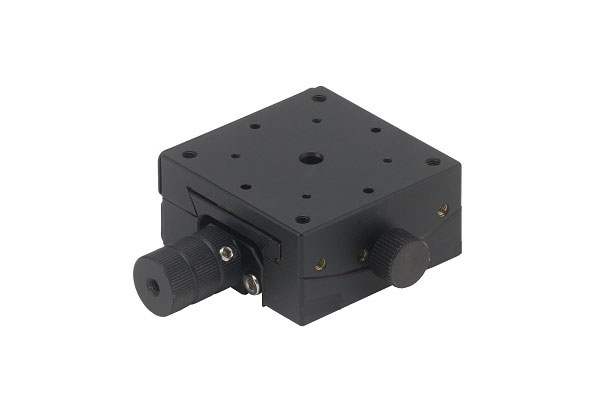

Manual Alpha-axis Goniometer Stage Picture

MXG4-40CS, alpha-axis manual goniometers are made of brass alloy with an elegant black fluororesin coating.

The bench size is 40 X 40 mm has a body weight of 0.24 kg.
The drive mechanism is worm and worm gear. The worm gear ratios are
, ≈1.89 per revolution of knob.
They provide
+/- 15 degrees of rotation.

The maximum load of this goniometer table is 3.0 kg.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 40 mm.

  Unit: mm
Part No.. Table
Load Capacity
Material Surface
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
Height of
rotational center


40 by 40 3.0 0.18 Brass alloy Black Fluororesin +/- 20 ≈2.2 1/indicator 25


40 by 40 3.0 0.24 Brass alloy Black Fluororesin +/- 15 ≈1.89 1/indicator 40


40 by 40 3.0 0.3 Brass alloy Black Fluororesin   +/- 10  ≈28'11 1/indicator 50

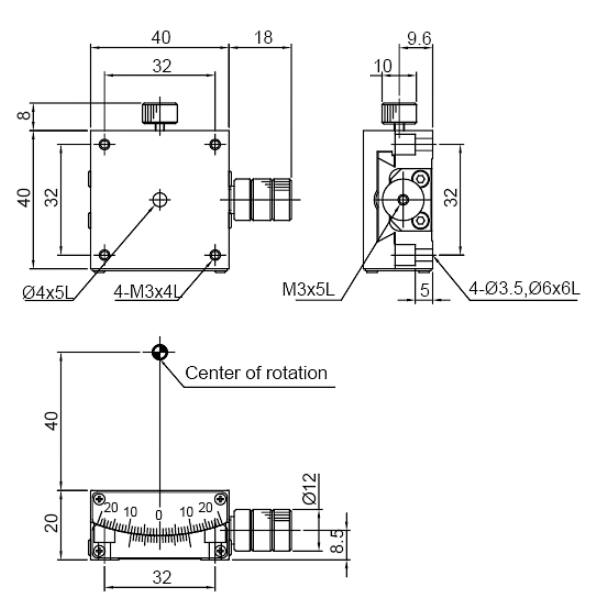

Mechanical Drawing


 Ordering Information

Part No. Description Amount
MXG4-40CS Manual Alpha-axis Goniometer Stage, Range of Travel  +/- 15 Click to Get a Quote
