Manual Alpha-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-axis Goniometer Stages

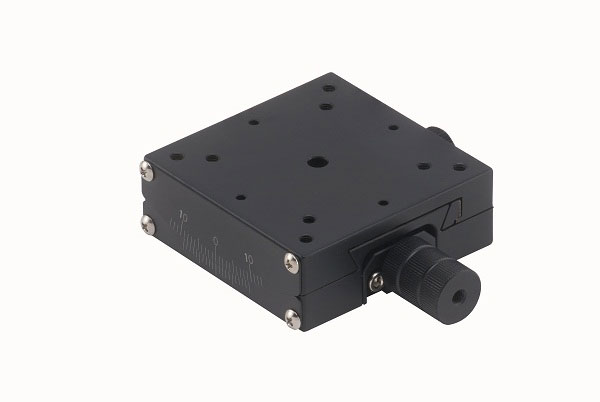

Manual Alpha-axis Goniometer Stage Picture

MXG5-50CS, manual goniometer is made of brass alloy with an elegant black fluororesin coating.

The bench size is 50 X 50 mm has a body weight of 0.36 kgf.

The drive mechanism is worm and worm gear. The worm gear ratios is
≈1.55, per revolution of knob.

They provide   +/- 10 degrees of rotation.

The maximum load of this goniometer table is 3.0 kgf.

The calibrated indicator shows of the angle of rotation.

The height of rotations 50 mm.

Specifications

Unit: mm
Model No. Table
Size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator
Height of
rotational center

 MXG5-50CS

50 by 50 α 3 0.36 Brass alloy Black Fluororesin +/- 10 1.55 0.1/indicator 50

 MXG5-68CS

50 by 50 α 3 0.36 Brass alloy Black Fluororesin +/- 10 1.2 0.1/indicator 68

 MXG5-86CS

50 by 50 α 3 0.36 Brass alloy Black Fluororesin +/- 8 0.97 0.1/indicator 86

Mechanical Drawing

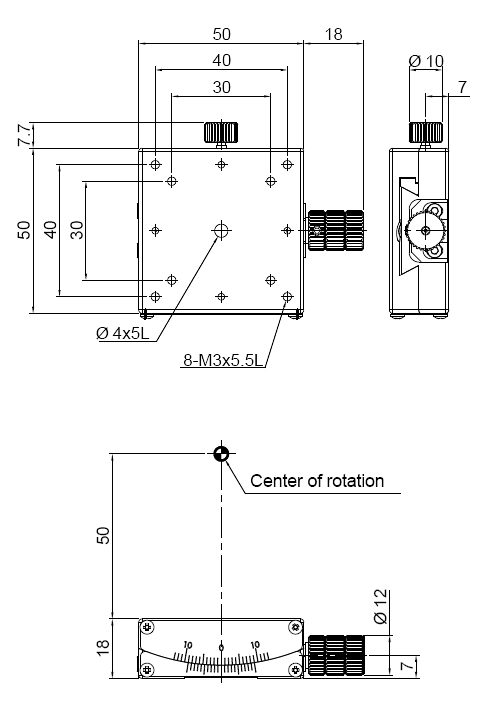

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MXG5-50CS

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MXG5-68CS

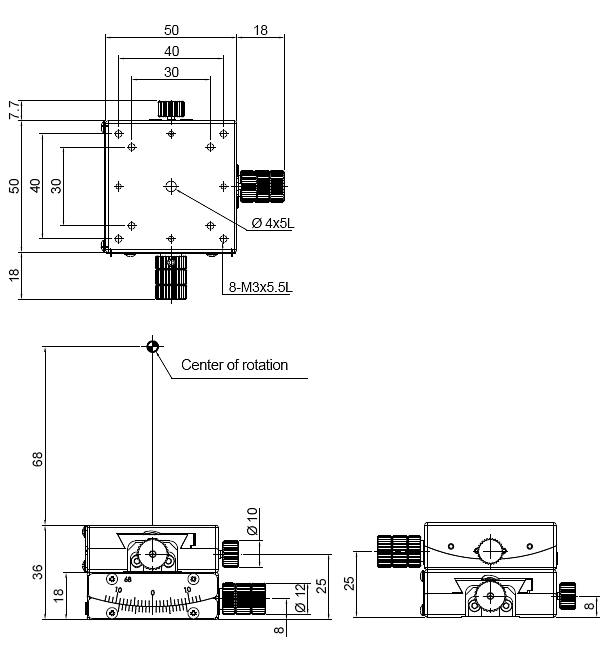

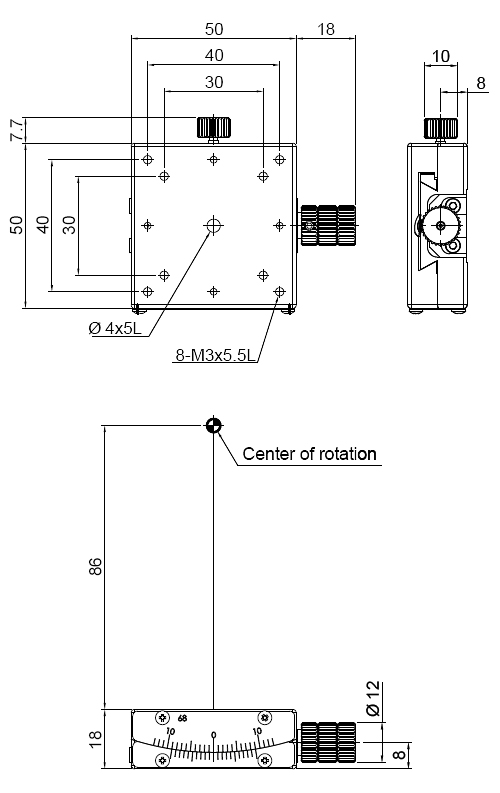

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MXG5-86CS

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MYG5-50CS

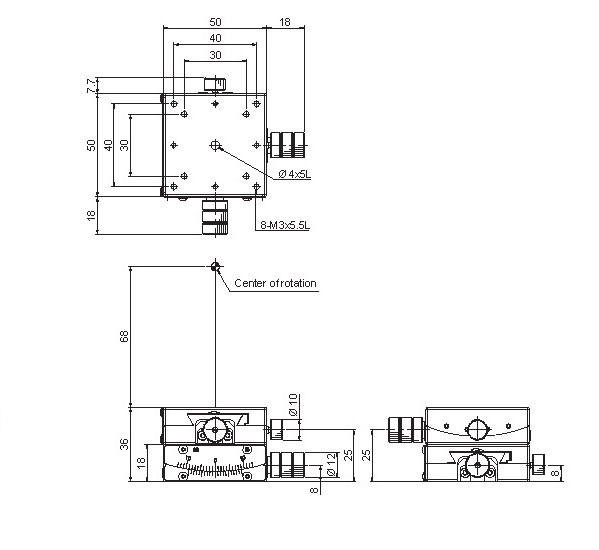

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MYG5-68CS

 Ordering Information

Part No. Description Amount
MXG5-50CS Manual Stage, Goniometer Stage, Alpha-Beta-axis Goniometer Stage, Range of Travel +/- 10 Click to Get a Quote
MXG5-68CS Manual Stage, Goniometer Stage, Alpha-axis Goniometer Stage, Range of Travel +/- 10 Click to Get a Quote
MXG5-86CS Manual Stage, Goniometer Stage, Alpha-axis Goniometer Stage, Range of Travel +/- 8 Click to Get a Quote
