Manual Alpha-Beta-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-Beta-axis Goniometer Stages

Manual Alpha-Beta-axis Goniometer Stage Picture


MYG4-25CS manual goniometer is made of brass alloy with an elegant black fluororesin coating.

The bench size is 40 X 40 mm has a body weight of 0.48 kgf.

The drive mechanism is worm and worm gear. The worm gear ratios is
Upper axis ≈2.2, Lower axis ≈1.89 per revolution of knob.

It provides Upper axis +/-25 and Lower axis +/-15 of rotation.

The maximum load of this goniometer table is 2.8 kgf.

The calibrated indicator shows of the angle of rotation.

The height of rotations are 25 mm.

Specifications
  Unit: mm
Model No. Table
Size
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator
Height of
rotational center

 MYG4-25CS

40 by 40 2.8 0.48 Brass alloy Black Fluororesin Upper axis: +/-25
Lower axis: +/-15
Upper axis ≈2.2
Lower axis ≈1.89
1/indicator 25

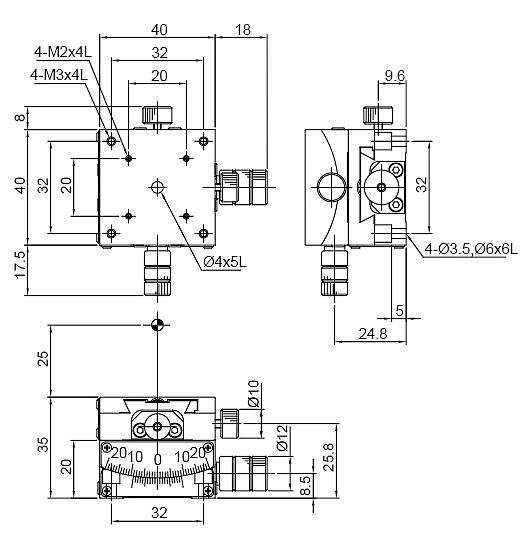

Mechanical Drawing

Manual Alpha-Beta-axis Goniometer Stage Mechanical Drawing
MYG4-25CS

 Ordering Information

Part No. Description Amount
MYG4-25CS Manual Stage, Goniometer Stage, Alpha-Beta-axis Goniometer Stage, Range of Travel Upper axis +/- 20, Lower axis +/- 15 Click to Get a Quote
