Manual Alpha-Beta-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-Beta-axis Goniometer Stages

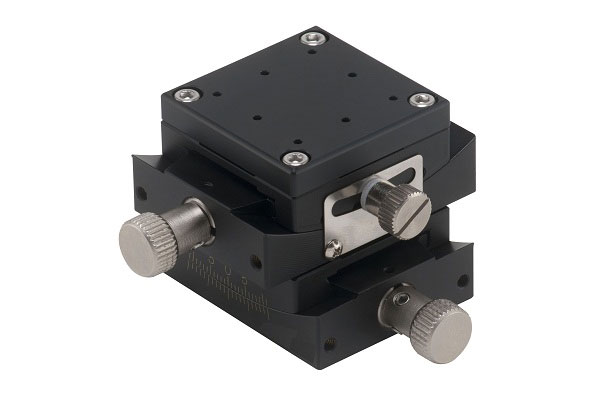

Manual Alpha-Beta-axis Goniometer Stage Picture


MYG4-50CE manual goniometer is made of brass alloy with an elegant black fluororesin coating.

The bench size is 40 X 40 mm has a body weight of 0.6 kgf.

The drive mechanism is worm and worm gear. The worm gear ratios is
Upper axis ≈28'11'', Lower axis ≈21'45'' per revolution of knob.

It provides Upper axis +/-8 and Lower axis +/-6 of rotation.

The maximum load of this goniometer table is 3 kgf.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 50 mm.

Specifications

Unit: mm
Model No. Table
Size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator
Height of
rotational center

 MYG4-50CE

40 by 40 αβ 3 0.6 Brass alloy Black Fluororesin Upper axis +/-8
down axis +/-6
Upper axis ≈28'11'' Lower axis ≈ 21'45'' 0.1 / indicator 50

Mechanical Drawing

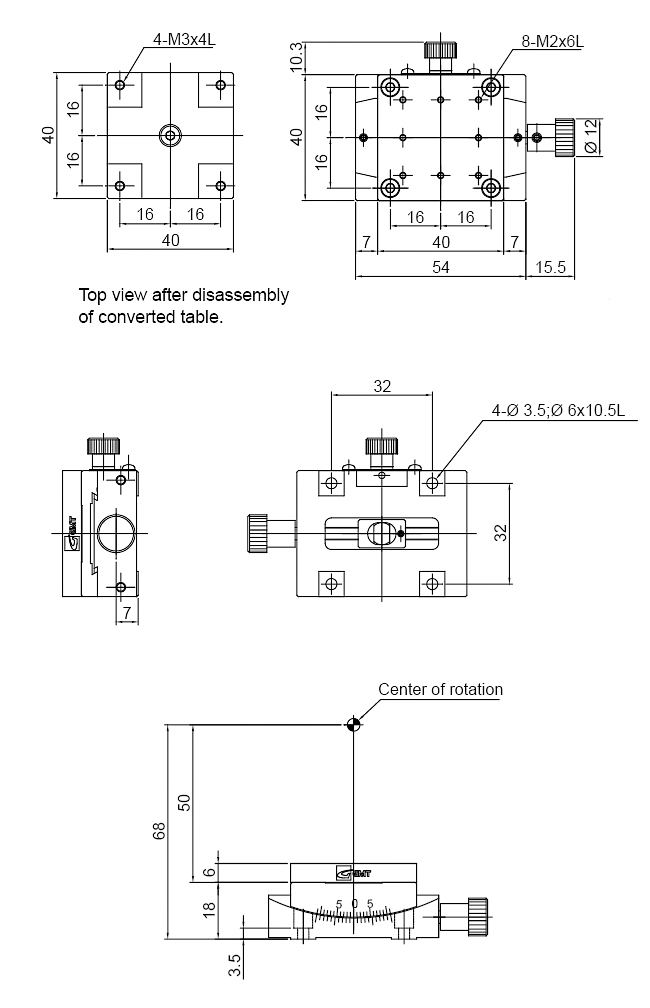

Manual Alpha-Beta-axis Goniometer Stage Mechanical Drawing
MXG4-50CE

 Ordering Information

Part No. Description Amount
MYG4-50CE Manual Stage, Goniometer Stage, Alpha-Beta-axis Goniometer Stage, Range of Travel Upper axis +/- 8, Lower axis +/- 6 Click to Get a Quote
