Manual Alpha-Beta-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-Beta-axis Goniometer Stages

Manual Alpha-Beta-axis Goniometer Stage Picture


MYG4-68CE manual goniometer is made of brass alloy with an elegant black fluororesin coating.

The bench size is 40 X 40 mm has a body weight of 0.6 kgf.

The drive mechanism is worm and worm gear. The worm gear ratios is
Upper axis ≈28'11' Lower axis ≈17'453' per revolution of knob.

It provides Upper axis +/-6 and Lower axis +/-5 of rotation.

The maximum load of this goniometer table is 3 kgf.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 68 mm.

Specifications

Unit: mm
Model No. Table
Size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator
Height of
rotational center

 MYG4-68CE

40 by 40 αβ 3 0.6 Brass alloy Black Fluororesin Upper axis +/-6
down axis +/-5
 Upper axis ≈28'11  Lower axis ≈ 17'453' 0.1 / indicator 68

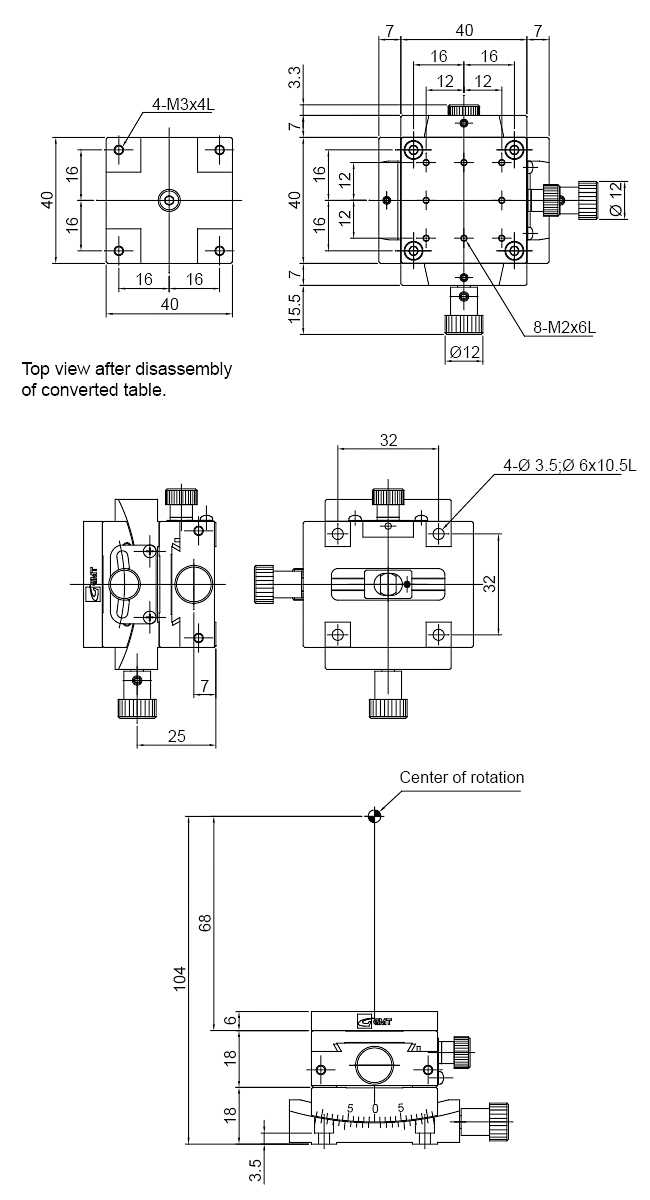

Manual Alpha-Beta-axis Goniometer Stage Mechanical Drawing
MXG4-68CE

 Ordering Information

Part No. Description Amount
MYG4-68CE Manual Stage, Goniometer Stage, Alpha-Beta-axis Goniometer Stage, Range of Travel Upper axis +/- 6, Lower axis +/- 5 Click to Get a Quote
