Manual Alpha-Beta-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-Beta-axis Goniometer Stages

Manual Alpha-Beta-axis Goniometer Stage Picture


MYG5-50CS manual goniometer is made of brass alloy with an elegant black fluororesin coating.

The bench size is 50 X 50 mm has a body weight of 0.71 kgf.

The drive mechanism is worm and worm gear. The worm gear ratios is
Upper axis ≈1.55, Lower axis ≈1.2 per revolution of knob.

It provides Upper axis +/-10 and Lower axis +/-8 of rotation.

The maximum load of this goniometer table is 3 kgf.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 50 mm.

Specifications

Unit: mm
Model No. Table
Size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator
Height of
rotational center

 MYG5-50CS

50 by 50 αβ 3 0.71 Brass alloy Black Fluororesin Upper +/-10
Lower +/-8
Upper axis ≈1.55
Lower axis ≈1.2
1/indicator 50

 MYG5-68CS

50 by 50 αβ 3 0.71 Brass alloy Black Fluororesin Upper +/-10
Lower +/-8
Upper axis ≈1.2
Lower axis ≈0.97
1/indicator 68

Mechanical Drawing

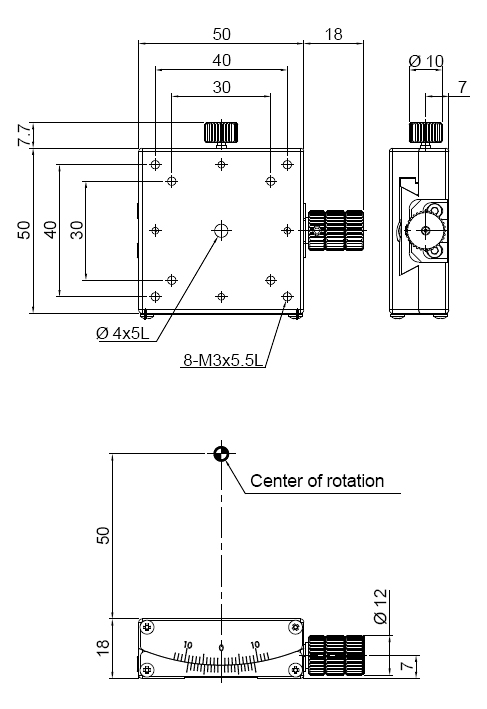

Manual Alpha-Beta-axis Goniometer Stage Mechanical Drawing
MXG5-50CS

Manual Alpha-Beta-axis Goniometer Stage Mechanical Drawing
MXG5-68CS

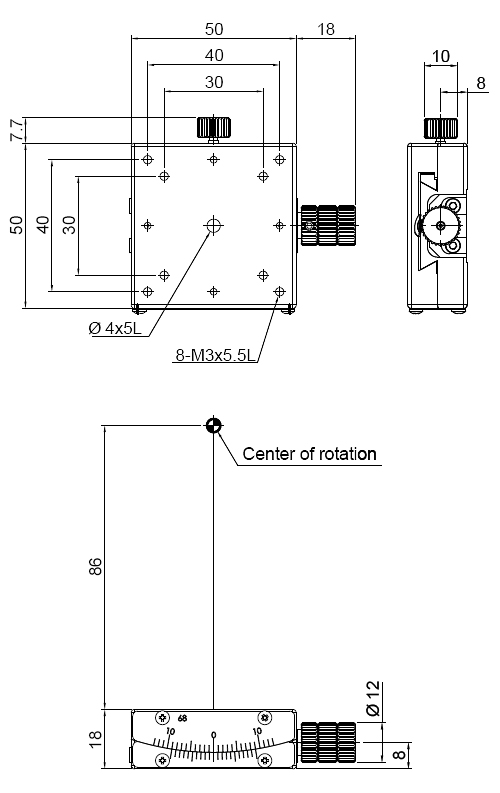

Manual Alpha-Beta-axis Goniometer Stage Mechanical Drawing
MXG5-86CS

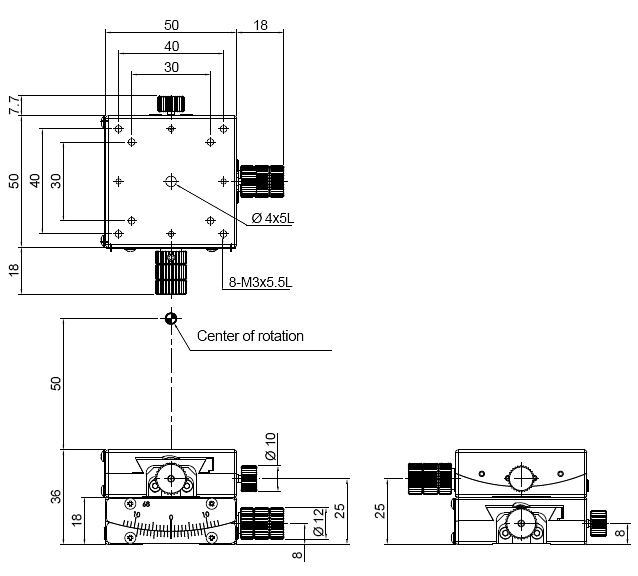

Manual Alpha-Beta-axis Goniometer Stage Mechanical Drawing
MYG5-50CS

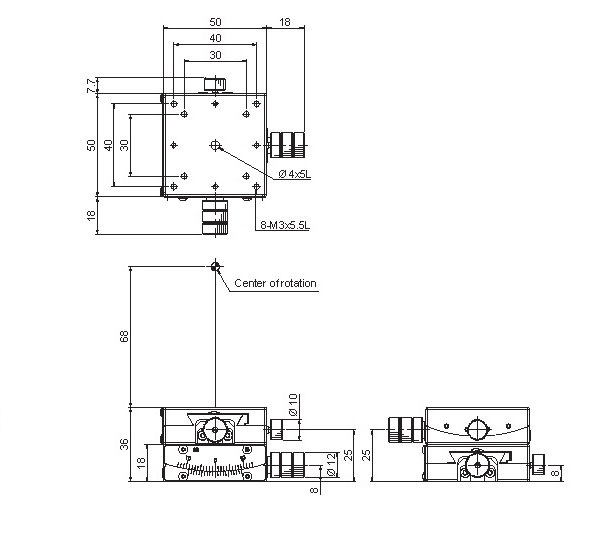

Manual Alpha-Beta-axis Goniometer Stage Mechanical Drawing
MYG5-68CS

 Ordering Information

Part No. Description Amount
MYG4-50CS Manual Stage, Goniometer Stage, Alpha-Beta-axis Goniometer Stage, Range of Travel Upper axis +/- 10, Lower axis +/- 10 Click to Get a Quote
MYG4-68CS Manual Stage, Goniometer Stage, Alpha-Beta-axis Goniometer Stage, Range of Travel Upper axis +/- 10, Lower axis +/- 10 Click to Get a Quote
