Manual Alpha-Beta-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-Beta-axis Goniometer Stages

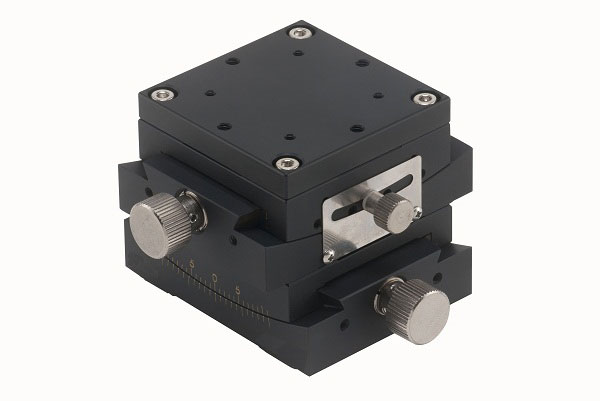

Manual Alpha-Beta-axis Goniometer Stage Picture


MYG5-70CE manual goniometer is made of brass alloy with an elegant black fluororesin coating.

The bench size is 60 X 60 mm has a body weight of 1.4 kgf.

The drive mechanism is worm and worm gear. The worm gear ratios is
Upper axis ≈19'59'', Lower axis ≈15'21'' per revolution of knob.

It provides Upper axis +/-8 and Lower axis +/-6 of rotation.

The maximum load of this goniometer table is 5 kgf.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 70 mm.

Specifications

Unit: mm
Model No. Table
Size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator
Height of
rotational center

 MYG5-70CE

60 by 60 αβ 5 1.4 Brass alloy Black Fluororesin Upper +/-8
Lower +/-6
Upper axis ≈19'59''
Lower axis ≈15'21''
1/indicator 70

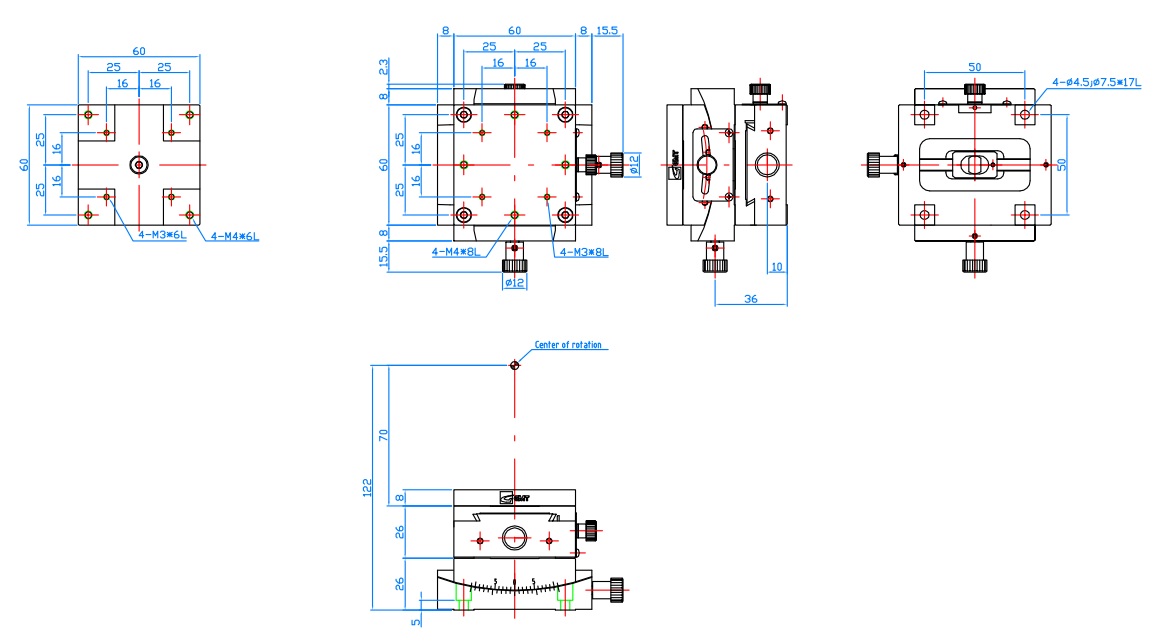

Mechanical Drawing

Manual Alpha-Beta-axis Goniometer Stage Mechanical Drawing
MXG6-70CE

 Ordering Information

Part No. Description Amount
MYG6-70CE Manual Stage, Goniometer Stage, Alpha-Beta-axis Goniometer Stage, Range of Travel Upper axis +/- 8, Lower axis +/- 6 Click to Get a Quote
