Motorized Goniometer Stage

Home > Motorized Goniometer Stages

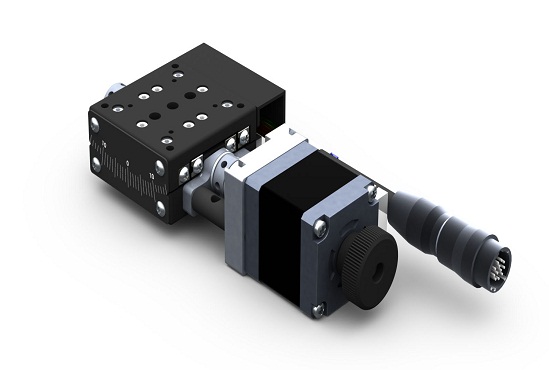

This motorized goniometer is made of aluminum alloy with an elegant black anodized surface.

The bench size is 60 X 60 mm and has a body weight of 0.4 Kg.

The drive mechanism is worm and worm gear. The worm gear ratio is 120:1.

It provides +/-6 of rotation at a maximum speed of 28.86 per second.

The maximum load of this goniometer table is 3 Kg.

The resolution of 0.00054 is achieved with a 10 micro-steps per step stepper motor driver. This goniometer stage is
also available with a servo motor and optical encoder.

The calibrated indicator shows of the angle of rotation.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage is compatible with OES' line of Motion Controllers.

Specifications

Type

AXG4-60VW

M
e
c
h
n
i
c
a
l

s
p
e
c

Table Size 60 X 60 mm
Range of Travel +/-6
Position Center Height 60 +/- 0.2 mm
Position Center Accuracy 0.01 mm
Gear Ratio Worm Gear (Ratio 1/ 335)
Travel Guide Crossed-roller lead-type
Load 3 kgf [29.4N]
Body Weight 0.4 Kg
Material Aluminum Alloy
Surface treatment Black Anodized
Line-generating method R/L


T
y
p
i
c
a
l

A
c
c
u
r
a
c
y


2-phase
resolution
(pulse)
Resolution Full/Half 0.0054 / 0.0027
Micro Stepping(1/10 step) +/- 0.00054
Maximum Speed 28.86/ sec
Typical Reciprocating Position Precision +/- 0.008
Typical Ideal Run +/- 0.25

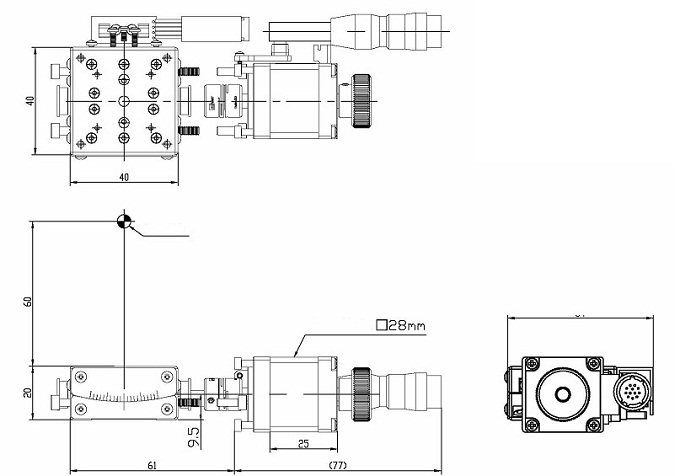

Mechanical Drawing


 Ordering Information

Part No. Description Amount
AXG4-60VW Motorized Goniometer Stage, Table Size 60x60 mm Click to Get a Quote
