Motorized Goniometer Stage

Home > Motorized Goniometer Stages




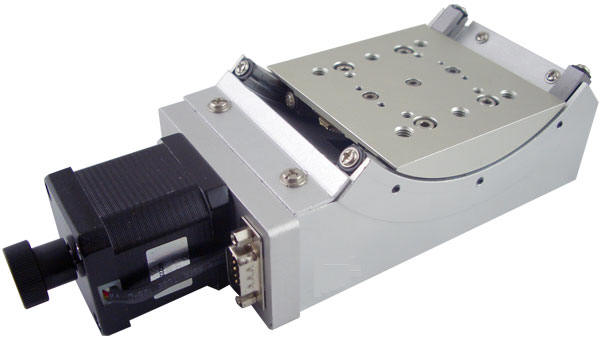

This motorized goniometer is made of aluminum alloy with an elegant black anodized surface.

The bench size is 120 X 130 mm and has a body weight of 1.5 kg.

The drive mechanism is worm and worm gear.

It provides +/-45° of rotation at a maximum speed of 7° per second.

The maximum load of this goniometer table is 10 kg.

The calibrated indicator shows of the angle of rotation.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position
verification verification.

This stage is compatible with OES' line of
Motion Controllers. ..

Specifications

Type

XO09GA-15

Range of Travel

+/-45°

Table Size 80 mm×80 mm
Gear Ratio 45 (degrees stage) : 352 (degrees motor)
Height of Rotation Stage

50 mm+/-0.2 mm

Drive Mechanism Worm Gear
Travel Guide Crossed-roller Guide
Stepper Motor
Size 23
Phase Resistance 3.8 Ohm,  Bi-directional
Maximum Phase Current 1 Amp
9 pin DB-9 Male Connector
Pin Assignment and Description
1,2,3,4,5
6 Phase A+
7 Phase A-
8 Phase B+
9 Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 10 kg
Weight 1.55 kg
Rotation Center Deflection Accuracy 0.03 mm
Maximum Speed 7°/sec
Typical Repeatability +/-3″

Mechanical Drawing


 Ordering Information

Part No. Description Amount
XO09GA-15 Motorized Goniometer Stage, Table Size 120 x 130 mm Click to Get a Quote
