Motorized Goniometer Stage

Home > Motorized Goniometer Stages

This motorized goniometer is made of aluminum alloy with an elegant black anodized surface.

The bench size is 120 X 130 mm and has a body weight of 5  kg.

The drive mechanism is worm and worm gear. The worm gear ratio is 1:464.

It provides +/-10 of rotation at a maximum speed of 4 per second.

The maximum load of this goniometer table is 30  kg.

The calibrated indicator shows of the angle of rotation.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage is compatible with OES' line of
Motion Controllers. ..




Range of Travel


Table Size 120 mm x130 mm
Gear Ratio 1 : 464
Height of Rotation Stage

210 mm+/-0.2 mm

Drive Mechanism Worm Gear
Travel Guide Crossed-roller Guide
Stepper Motor
Size 23
Phase Resistance 2.5 Ohm,  Bi-directional
Maximum Phase Current 1 Amp
9 pin DB-9 Male Connector
Pin Assignment and Description
6 Motor Phase A+
7 Motor Phase A-
8 Motor Phase B+
9 Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 30 kg
Weight 5 kg
Rotation Center Deflection Accuracy 0.03 mm
Maximum Speed 4/sec
Typical Repeatability +/-3

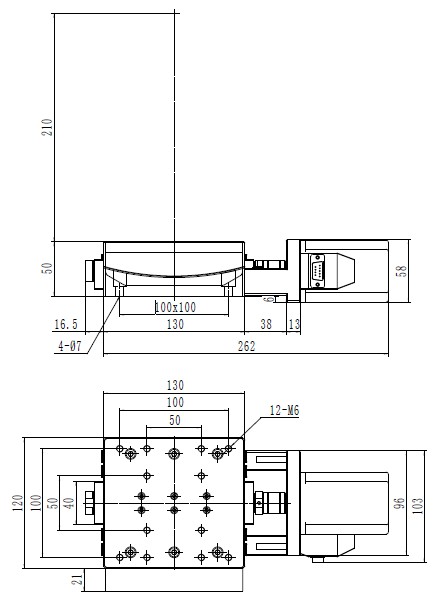

Mechanical Drawing

 Ordering Information

Part No. Description Amount
AK150-10 Motorized Goniometer Stage, Table Size 120 x 130 mm Click to Get a Quote
