Solid Core Motorized XY Table

Home > Motorized XY Stages

Solid Core Motorized  Dual-axis Table, Range of Travel: 100 mm x 100 mm

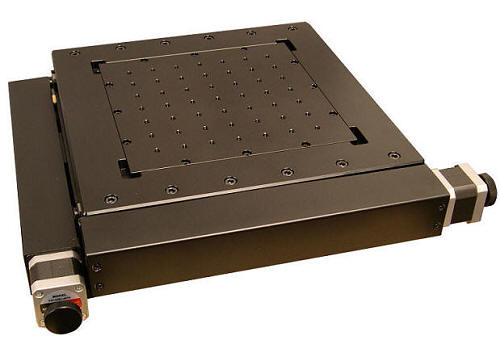

The AU200-100X100-SC Solid Core Motorized XY Stage is a high resolution, low profile, high load capacity, horizontal stage that can be easily integrated into any current or future application.

The linear travel of the X and Y axes is 100mm x 100mm (3.937 in. x 3.937 in.) and the resolution of the X and Y axes is 20 microns (non-micro-step) or 1 micron (20 micro-steps per step motor driver in use), the typical repeatability is 2 microns, and the typical positional accuracy is 3 microns.  A low profile XY stage measuring just 80 mm (3.150 in.) high with a compact footprint (including the motors) of 348 mm x 348 mm (13.701 in. x 13.701 in.), the stage is designed for: Alignment, assembly, laser drilling and machining, industrial, medical, testing, scanning, semiconductor handling, and optical applications.

Preloaded V-groove and crossed roller bearings and ground 4 mm per-turn lead screws having just 2 microns of backlash, all contribute to the high precision and stiffness of the AU200-100x100-SC Stage.  The table of  XY stage measures 300 mm x 300 mm  (11.811 in x 11.811 in.) and has a precision pattern of 21 drilled and threaded mounting holes to easily add special tooling or fixtures, and for easy integration into new and existing applications.  Additional tooling plates are also available for custom and interchangeable applications.

The standard two-phase (1.8o) stepper motors have knobs for manual adjustments of each axis of the stage, however, the knobs can be replaced with incremental encoders for position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.

Specifications
Type

AU200-100x100-SC

Structure Description

Range of Travel

100 mm

Table Size 300 mm x 300 mm
Actuator Type Lead Screw (4 mm per turn, optional 1 mm per turn)
Travel Guide

Precision V-groove & Crossed Roller


Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load capacity 50 kg
Weight 8.3 kg

Typical Accuracy Description

Resolution 20 microns (Full Step)
1 microns (20 Micro-steps per Step Motor Driver in use)
Repeatability 2 microns
Positional Accuracy 10 microns

Electrical Description

Motor
Two Phase Stepper Motor (1.8)
Typical Phase Resistance 3.8 Ohms, Bi-directional
Typical Phase Current 1 Amp

Pin Assignment and Description

1

+5 VDC

2

CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

3

CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

4

Common

5 Not Connected
6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-

DB-9 Male Connector







Accessories Description Servo Motor

Optical Encoder


Mechanical Drawing

Mechanical Drawing of Solid Core Motorized  Two-axis Table, Range of Travel: 100 mm x 100 mm

 Ordering Information

Part No. Description Amount
AU200-100x100-SC-01 Stepper Motor Driven Linear Solid Core Two-axis Stage, Range of Travel: 100 mm x100 mm Click to Get a Quote
AU200-100x100-SC-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Solid Core Two-axis Stage, Range of Travel: 100 mm x100 mm Click to Get a Quote
