Motorized XY Table

Home > Motorized XY Stages

Motorized  Dual-axis Table, Range of Travel: 120 mm x 120 mm

Stepper Motor Driven Linear Two-axis Stage

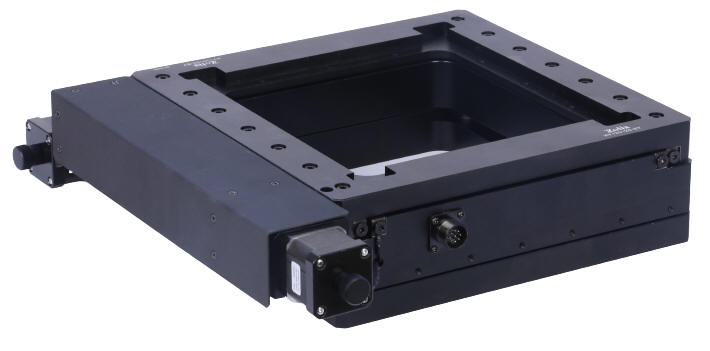

The AU200-120X120 Motorized XY Stage is a high resolution, low profile, high load capacity, horizontal stage that can be easily integrated into any current or future application.

The large 11.023 in x 11.023in (280 mm x 280 mm) platform has a large aperture for optical application. A solid top is also available.

The precision ground screws provide 4.724 in x 4.724 in (120 mm x 120 mm) of travel with high resolution and repeatability. Two hand knobs are mounted on the motors to provide for manual adjustment. This knob may be replaced with an optical encoder for position verification. The stepper motor may be replaced with a servo motor.

Some applications for the AU200-120X120 two-axes stage include: testing, inspection, assembly and sampling in a broad range of industrial, medical, semiconductor and research facilities.

The AU200-120X120 low profile 3.15 in (80 mm) horizontal stage is constructed with black-anodized aluminum alloy and weighs just 15.4 lbs (7.0 kg). The 2-phase NEMA 17 stepper motor and precision 4 mm per turn lead screw offer high load capacity up to 110 lbs (50 kg). The moving platform has access from all four sides and the base plate has easy to access holes for mounting.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.

Specifications
Type

AU200-120X120

Structure Description

Range of Travel

120 mm

Table Size 280 mm x 280 mm
Aperture Size 188 mm x 188 mm
Actuator Type Lead Screw (4 mm per turn, optional 1 mm per turn)
Travel Guide

Precision V-groove & Crossed Roller

DB-9 Male Connector


Two Phase Stepper Motor (1.8)
Typical Phase Resistance 3.8 Ohms, Bi-directional
Typical Phase Current 1 Amp

Pin Assignment and Description

1

+5 VDC

2

CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

3

CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

4

Common

5 Not Connected
6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load capacity 20 kg
Weight 7.0 kg

Typical Accuracy Description

Resolution 20 microns (Full Step)
1 microns (20 Micro-steps per Step Motor Driver in use)
Repeatability 2 microns
Positional Accuracy 10 microns

Accessories Description

Servo Motor

Optical Encoder

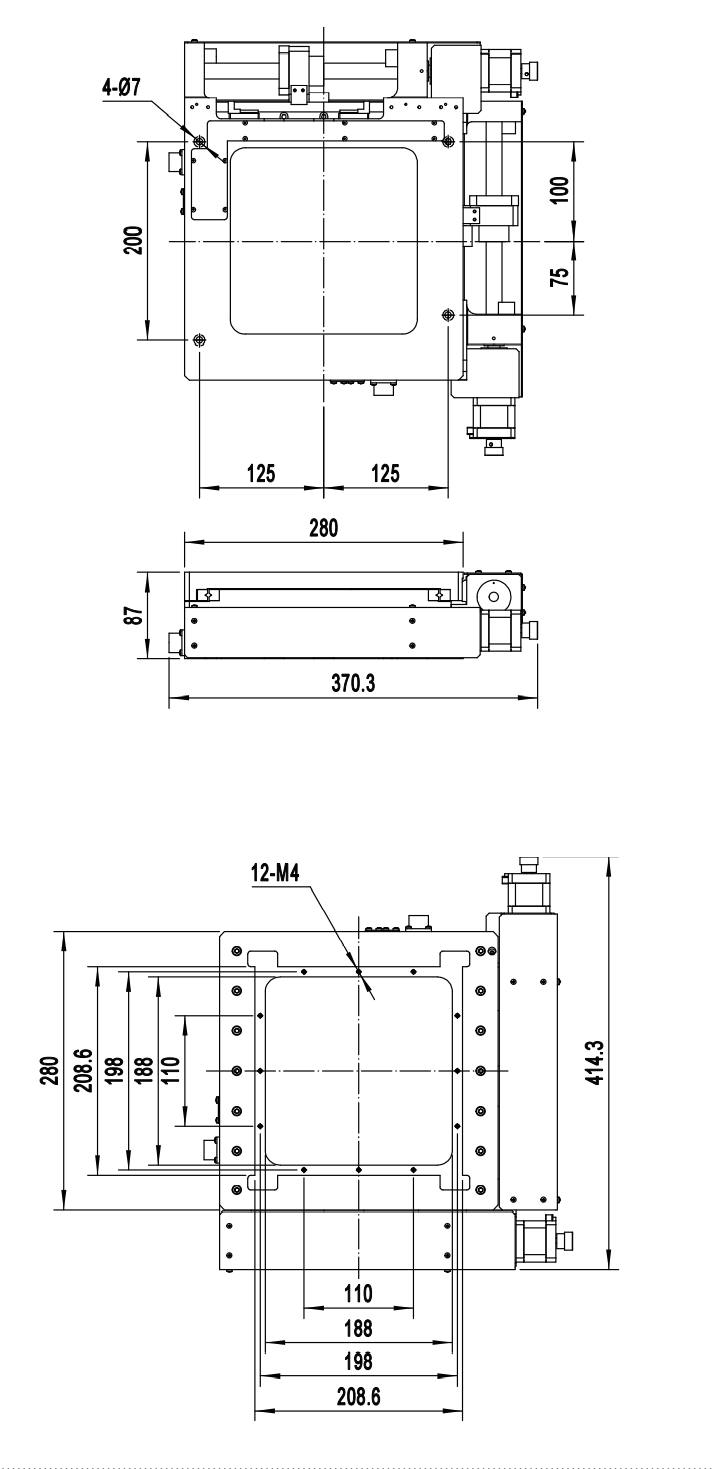

Stepper Motor Driven Mechanical Drawing

Click to get the STEP file



 Ordering Information

Part No. Description Amount
AU200-120X120-01 Stepper Motor Driven Linear Two-axis Stage, Range of Travel: 120 mm x120 mm Click to Get a Quote
AU200-120X120-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Two-axis Stage, Range of Travel: 120 mm x120 mm Click to Get a Quote
AU200-120X120-03 DC Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Two-axis Stage, Range of Travel: 120 mm x120 mm Click to Get a Quote
AU200-120X120-04 Stepper Motor Driven Linear Two-axis Stage  with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor, Range of Travel: 120 mm x120 mm Click to Get a Quote
