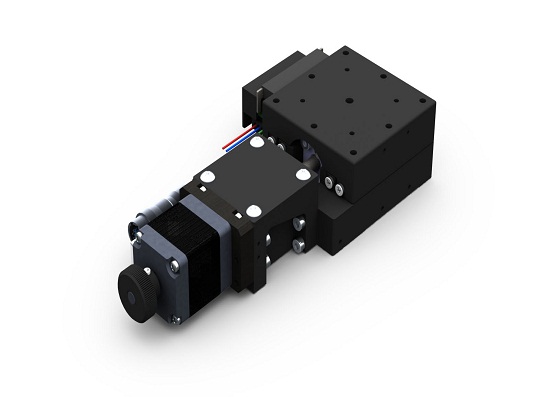

Motorized Linear Single-axis Stage

Home > Motorized Linear Stages


Specifications
Type

AX60 - A

M
e
c
h
n
i
c
a
l

s
p
e
c

Table Size 60 X 60 mm
Range of Travel 20
Travel Guide Ball screw Φ6, lead 1 mm
Runway

Cross-roller lead-type

Load 5 Kg [49N]
Body Weight 0.44 Kg
Material Aluminum Alloy
Surface treatment Black Anodized
Line generating method R/L

P
r
e
c
i
s
i
o
n

S
p
e
c

2-phase
resolution
(pulse)
Resolution (Full Step / Half Step) 5 /2.5 μm
Micro Stepping(1/5 step) 1 μm
Parallelism 30 μm
Moment Parallelism 15 μm
Movement straightness 3 μm
Maximum speed 25 mm/sec [5 KHz]

Precision
Grade

Single-direction positioning precision 5 μm
Reciprocating position precision +/- 0.3 μm
Black clearance 0.5 μm
Idle Run 1 μm

Normal
Grade

Single-direction positioning precision 12.5 μm
Reciprocating position precision +/- 0.6 μm
Black clearance 1.5 μm
Idle Run 2 μm

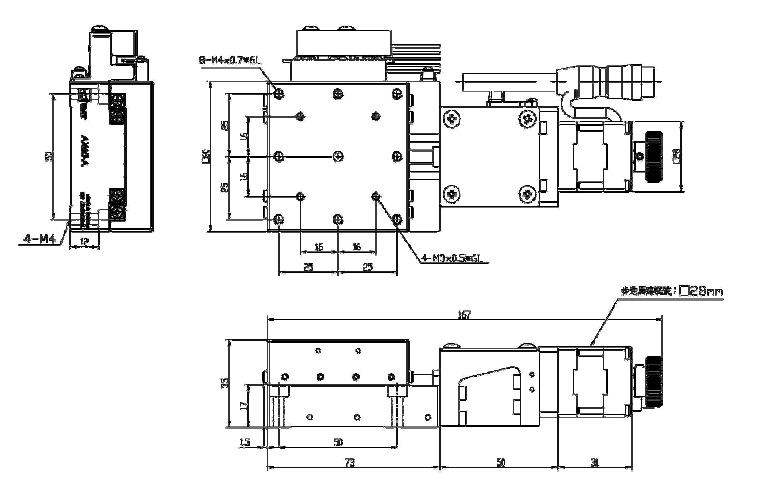

Mechanical Drawing


 Ordering Information

Part No. Description Amount
AX60-A Motorized Linear Single-axis Stage, Table Size 60x60 mm Click to Get a Quote
