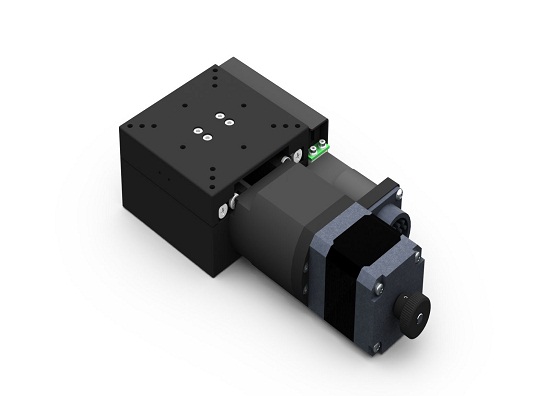

Motorized Linear Single-axis Stage

Home > Motorized Linear Stages


Specifications

Type

AX80 - A

M
e
c
h
n
i
c
a
l

s
p
e
c

Table Size

80 X 80 mm

Range of Travel 30 mm
Travel Guide Ball screw Φ8, lead 1 mm
Runway

Cross-roller lead-type

Load 20 Kg [49N]
Body Weight 1.4 Kg
Material Aluminum Alloy
Surface treatment Black Anodized
Line generating method R/L

P
r
e
c
i
s
i
o
n

S
p
e
c

2-phase
resolution
(pulse)
Resolution (Full Step / Half Step) 5 /2.5 micron
Micro Stepping(1/5 step) 1 micron
Parallelism 30 micron
Moment Parallelism 10 micron
Movement straightness -
Maximum speed 40 mm/sec [5 KHz]

Precision
Grade

Single-direction positioning precision 5 micron
Reciprocating position precision +/- 0.3 micron
Black clearance 0.5 micron
Idle Run 1 micron

Normal
Grade

Single-direction positioning precision 12.5 micron
Reciprocating position precision +/- 0.6 micron
Black clearance 1.5 micron
Idle Run 2 micron

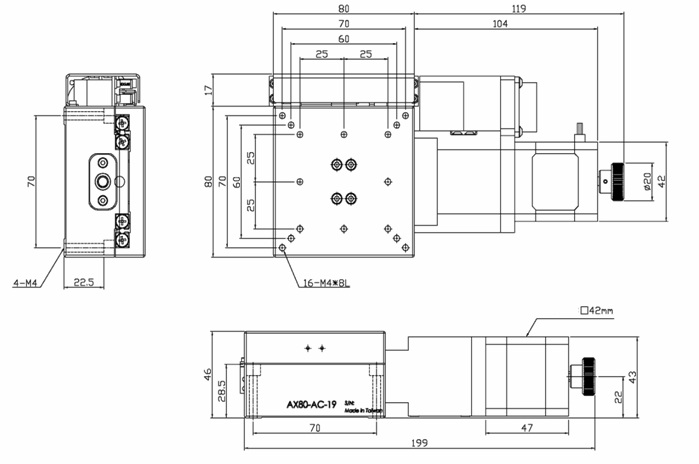

Mechanical Drawing


 Ordering Information

Part No. Description Amount
AX80-A Motorized Linear Single-axis Stage, Table Size 80 x 80 mm Click to Get a Quote
