Motorized Linear Vertical Stage

Home > Motorized Vertical Single-axis Stages


The AZ7010-A Motorized Vertical Elevator Stage is a low-profile and compact 169.4 mm x 70 mm..

It perfectly suited for low cost, high resolution, wedge type, vertical elevator applications requiring precise vertical positioning.

The crossed roller guides and a precision ground 8-mm-diameter 1000 microns/turn lead ball screw provides smooth, straight (straightness to better than 5 microns). More after the jump.

The stage delivers good parallelism (<30 microns to the mounting surface), and high resolutions to 0.5 microns (full step), 0.25 microns (1/2 step), and 0.05 microns (1/10 micro step), and repeatability to +/- 0.5 microns. Travel speeds are up to 5 mm/sec.

The typical applications for the AZ7010-A elevator stage include:

Photonic alignment, wafer inspection, precision vertical alignment, laser marking
Optical positioning, testing, inspection, assembly, sampling
Laser drilling and machining in a broad range of industrial, medical, semiconductor, and research facilities

The AZ7010-A Elevator Stage is constructed of black-anodized aluminum alloy and weighs just 1.1 kg (2.5 lb). A powerful NEMA 14 1.8 2-phase stepper motor has a double ended shaft with a knob for manual adjustments. This knob may be replaced with a quadrature encoder for position verification. The non-cantilevered moving wedge elevator stage has a Load Capacity of 10 kg (22 lb) without concern for loss of parallelism, and the base plate has easy to access holes for mounting.



Specifications
Type

AZ7010-A

M
e
c
h
n
i
c
a
l

s
p
e
c

Table Size

70 X 70 mm

Range of Travel 10 mm
Travel Guide Ball screw Φ8, lead 1000 μm / turn
Runway

Cross-roller lead-type

Load 10 Kg
Body Weight 1.1 Kg
Material Aluminum Alloy
Surface treatment Black Anodized

T
y
p
i
c
a
l

P
r
e
c
i
s
i
o
n

S
p
e
c

2-phase
resolution
(pulse)
Resolution Full Step / Half Step 5 μm / 2.5 μm
Micro Stepping(1/10 step) 0.5 μm
Maximum Speed 5 mm / sec
Positioning Precision 5 μm
Repeatability +/- 0.5 μm
Parallelism 20 μm
Dynamic Straightness 5 μm
Dynamic Parallelism 26.5 μm

Electrical Connection

Pin No.

Description

Two-Phase Stepper Motor (1.8) 35H36H-1004B
Phase Resistance 2.7 Ohm, Bi-directional
Maximum Phase Current 1 Amp

DB-15 Male Connector



Pin No.

Description

1 Stepper Motor Phase A+
2 Stepper Motor Phase A-
3 Stepper Motor Phase B+
4 Stepper Motor Phase B-
5 Not Connected
5 Not Connected
5 Not Connected
8 Not Connected
9

+5 VDC Power Input

10 One Pulse per Motor Revolution, Open Collector. Normally High, Active Low
11

+5 VDC Power Input Common

12 Not Connected
13 Not Connected
14 Not Connected
15 Not Connected

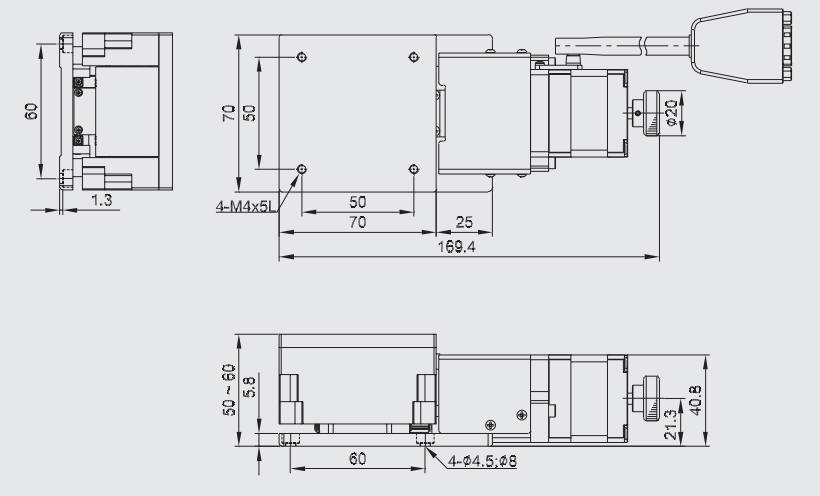

Mechanical Drawing

 Ordering Information

Part No. Description Amount
AZ7010-A Motorized Linear Vertical Stage, Table Size 95 x 60 mm Click to Get a Quote
