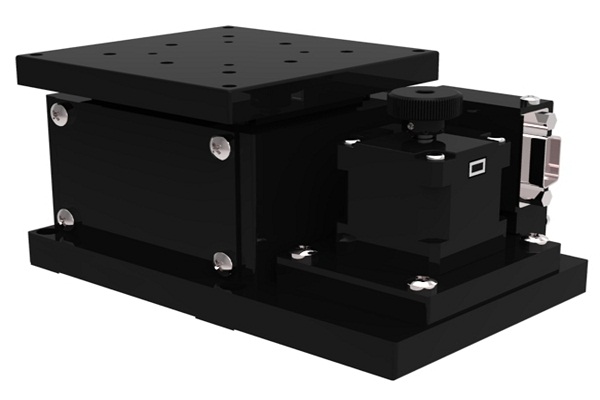

Motorized Linear Vertical Stage

Home > Motorized Vertical Single-axis Stages


Specifications
Type

AZV90 - A

M
e
c
h
n
i
c
a
l

s
p
e
c

Table Size 90 X 90 mm
Range of Travel 0 ~ 10 mm
Travel Guide Ball screw Φ8, lead 1 mm
Runway Belt transmission type
Load 5 Kg
Body Weight 1.8 Kg
Material Aluminum Alloy
Surface treatment Black Anodized
Line generating method Standard line - generation

T
y
p
i
c
a
l

P
r
e
c
i
s
i
o
n

S
p
e
c

2-phase
resolution
(pulse)
Resolution 2.5 micron / 1.25 micron
Micro Stepping(1/5 step) 0.5 micron
Parallelism 30 micron
Maximum Speed 12.5 mm / sec

Precision
Grade

Single-direction positioning precision 8 micron
Reciprocating position precision +/- 0.8 micron
Black clearance 0.5 micron
Idle Run 1 micron

Normal
Grade

Single-direction positioning precision 20 micron
Reciprocating position precision +/- 1.6 micron
Black clearance 1.5 micron
Idle Run 2 micron

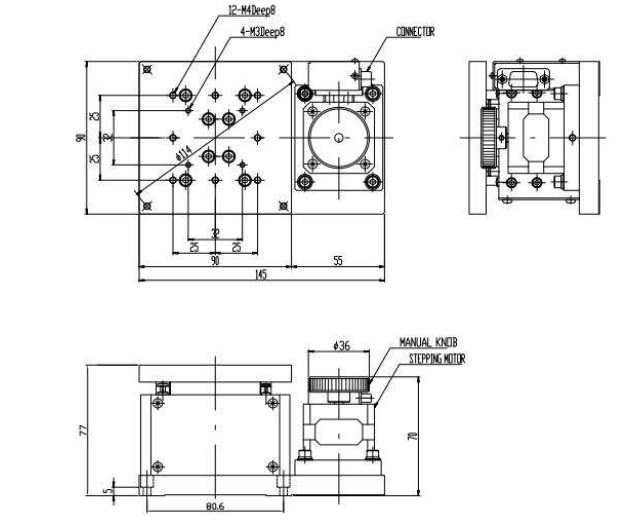

Mechanical Drawing


Electrical Drawing


 Ordering Information

Part No. Description Amount
AZV90-A Motorized Linear Vertical Stage, Table Size 90x90 mm Click to Get a Quote
