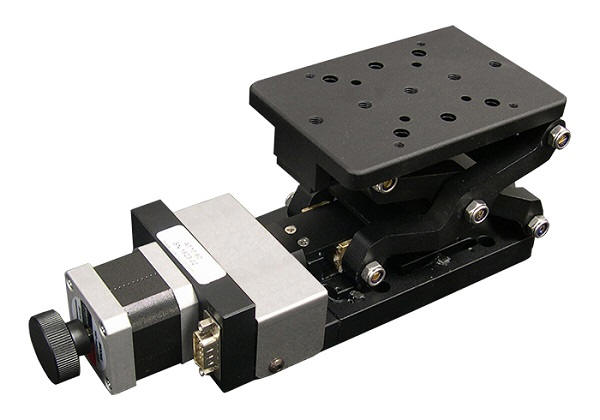

Motorized Linear Vertical Stage

Home > Motorized Vertical Single-axis Stages


Key Features

  • Unique inclined plane concept delivers 60 mm of vertically motion in an ultra-low profile design

  • Higher load capacity compared to vertically

  • Free access to the moving platform from any side

  • Optional Integrated linear encoder provides for highly repeatable and accurate motion

Specifications
Type

AT10-60

Structure Description

Range of Travel

60 mm +/- 2mm

Table Size
Actuator Type Lead Screw
Travel Guide

Slide Rail

Motor Two-Phase Stepper Motor (1.8°)
Phase Resistance
Maximum Phase Current
9 pin DB-9 Male Connector
Pin Assignment and Description
1,2,3,4,5 Not Connected
6 Phase A+
7 Phase A-
8 Phase B+
9 Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load capacity 2.5 kg
Weight 1.8 kg

Typical Accuracy Description

Repeatability 10 μ
Backlash 4 μ

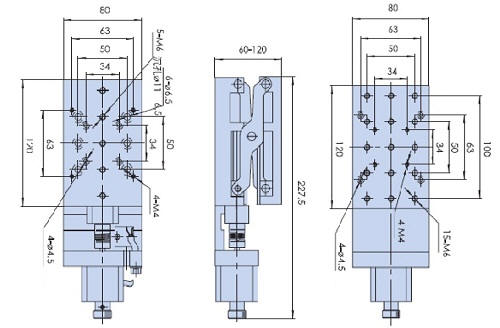

Mechanical Drawing


 Ordering Information

Part No. Description Amount
AT10-60 Motorized Linear Vertical Stage Click to Get a Quote
