Motorized Single-axis Table

Home > Motorized Linear Stages > Low Cost Linear Single-axis Stages


This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 15 mm of travel at a maximum speed of 5 mm per second. The drive mechanism is lead screw.

The bench size is 65 X 65 mm and has a body weight of 1.2 Kg.

The maximum load of this stage table is 10 Kg.

The resolution of 0.5 μ is achieved with a 10 micro-steps per step stepper motor driver. This linear stage is
also available with a servo motor and optical encoder.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage is compatible with OES' line of
Motion Controllers..

Specifications
Type

AQ110-15

Structure Description

Travel

15 mm

Table Size 65 mm 65 mm
Lead Screw Pitch 0.5 mm per turn
Travel Guide

High Precision Crossed Roller

Motor Two-Phase Stepper Motor (1.8)
Main Material Aluminum Alloy
Surface Treatment Black Anodized
Load capacity 10 kg
Weight 1.2 kg

Typical Accuracy

Resolution 0.25 / Step (10 Micro-steps per Step Motor Driver in use)
0.125μ(20 Micro-steps per Step Motor Driver in use)
Maximum Speed 5 mm / sec
Repeatability 3 μ
Positional Accuracy 10 μ
Straightness 5 μ
Driving parallelism 10 μ
Pitching 25"
Deflection 20"
Backlash 2 μ

Accessories Description

Limit Switches
Grating (G)
Servo Motor (S)

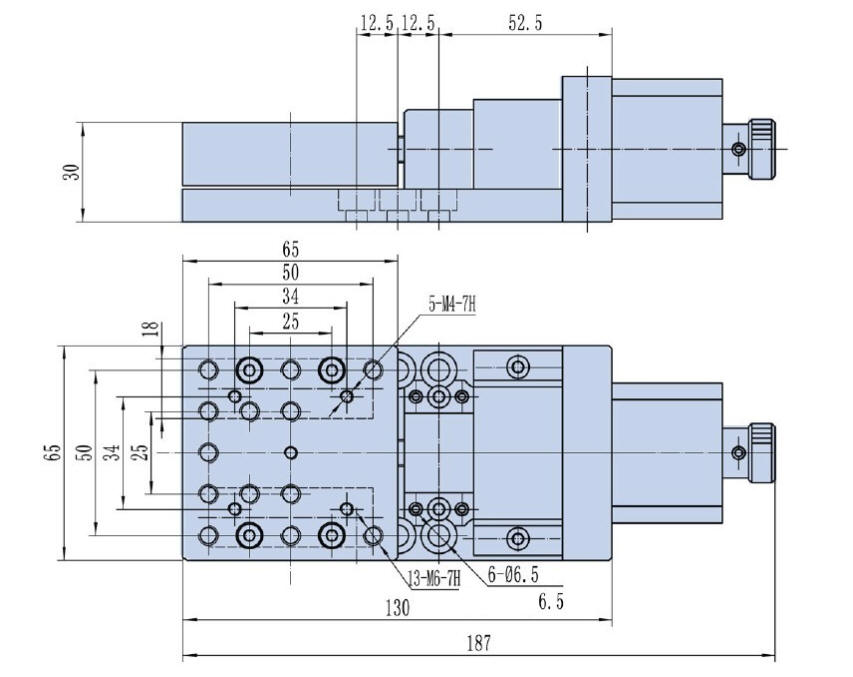

Mechanical Drawing


 Ordering Information

Part No. Description Amount
AQ110-15 Motorized Linear Single-axis Stage, Travel  : 15 mm Click to Get a Quote
