Motorized Single-axis Table

Home > Motorized Linear Actuators > Low Cost Linear Single-axis Stages

Motorized Single-axis Table, Range of Travel: 50 mm

This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 50 mm of travel at a Maximum Speed with Stepper Motor of 10 mm per second. The drive mechanism is lead screw.

The bench size is 90 X 110 mm and has a body weight of 1.4 Kg.

The maximum load of this stage table is 15 Kg.

This linear stage is also available with a Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an Optical Encoder (-04 Version) for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.



Specifications
Type

AQ110-50

Structure Description

Travel

50 mm

Table Size 90110 mm
Lead Screw Pitch 1 mm per turn
Travel Guide

High Precision Crossed Roller



Two-Phase Stepper Motor (1.8)

Typical Phase Resistance 3.8 Ohms, Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Pin Assignment and Description
1 +5 VDC for the Limit Sensors
2 Far End Limit Switch
Open Collector or Normally Open
Needs Pull up Resistor (typically 1000 Ohms)
Approximately 2.5 mm away from Far End Hard Stop
3 Near Motor Limit Switch
Open Collector or Normally Open
Needs Pull up Resistor (
typically 1000 Ohms)
Approximately 2.5 mm away from Motor Side Hard Stop
4 Return for+5 VDC
5 Not Connected
6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Body Material Aluminum Alloy
Surface Treatment Black Anodized
Load capacity 15 kg
Weight 1.5 kg

Typical Accuracy

Resolution Control Electronics Dependent, 0.5 microns with 10 Micro-steps per Step Motor Driver in use
0.25 microns with 20 Micro-steps per Step Motor Driver in use
Maximum Speed with Stepper Motor 15 mm/sec
Maximum Speed with Servo Motor
Positioning Accuracy 10 microns

Accessories Description

Positioning Repeatability

5 microns
Optical Encoder (-04 Version)
Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)

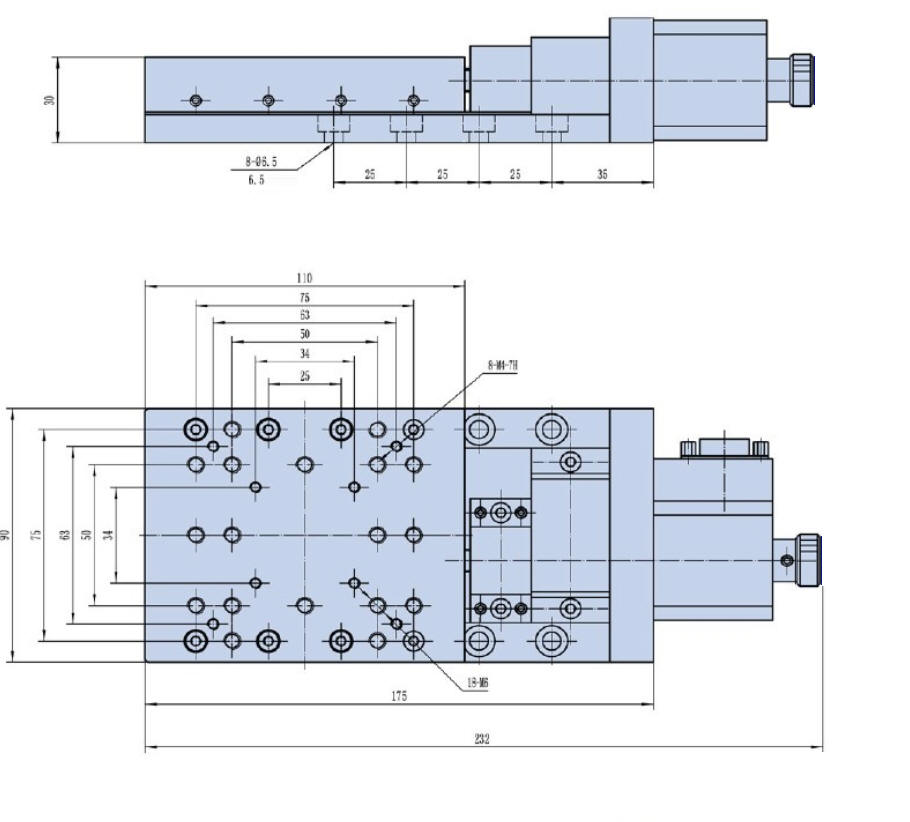

Mechanical Drawing

Click to Get the STEP file

 Ordering Information

Part No. Description Amount
AQ110-50-01 Stepper Motor Driven Linear Single-axis Stage, Travel  : 50 mm Click to Get a Quote
AQ110-50-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Single-axis Stage, Travel  : 50 mm Click to Get a Quote

Motion Controllers
