Motorized Single-axis Table

Home > Motorized Linear Stages > Low Cost Linear Single-axis Stages


This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 100 mm of travel at a maximum speed of 40 mm per second. The drive mechanism is lead screw.

The bench size is 150 X 150 mm and has a body weight of 3.4 Kg.

The maximum load of this stage table is 20 Kg.

The resolution of 2 μ is achieved with a 10 micro-steps per step stepper motor driver. This linear stage is
also available with a servo motor and optical encoder.

The knob mounted on the motor allows for manual adjustment.

This stage is compatible with OES' line of
Motion Controllers..



Specifications
Type

AQ150-100H

Structure Description

Travel

100 mm

Stage Size 150150mm
Lead Screw Pitch  4 mm per turn
Travel Guide

High Precision Linear Slide Guide

Motor Two-Phase Stepper Motor (1.8)/2 Phase Stepper Motor
Main Material Aluminum Alloy
Surface Treatment Black Anodized
Load capacity 20 kg
Weight 3.4 kg

Typical Accuracy

Resolution 2 /Pulse (10 Micro-steps per Step Motor Driver in use)
1 /Pulse (20 Micro step Driver in use)
Maximum Speed 40 mm/sec
Repeatability 5 μ
Absolute Positional Accuracy 3 μ
Straightness 3 μ
Driving parallelism 10 μ
Pitching 25"
Deflection 20"
Backlash 2 μ

Accessories Description

Brake (Z)
Grating (G)
Servo Motor (S)
Dustproof Cover (F)

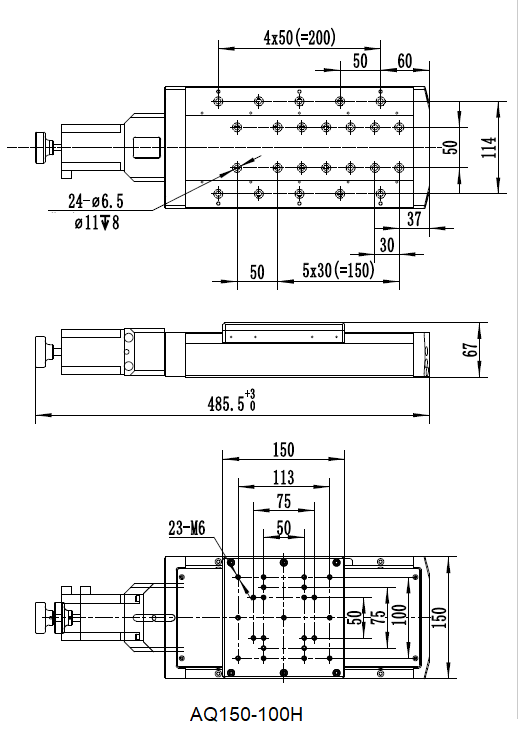

Mechanical Drawing


 Ordering Information

Part No. Description Amount
AQ150-100H Motorized Linear Single-axis Stage, Travel  : 100 mm Click to Get a Quote
