Motorized Single-axis Table

Home > Motorized Linear Stages > Low Cost Linear Single-axis Stages

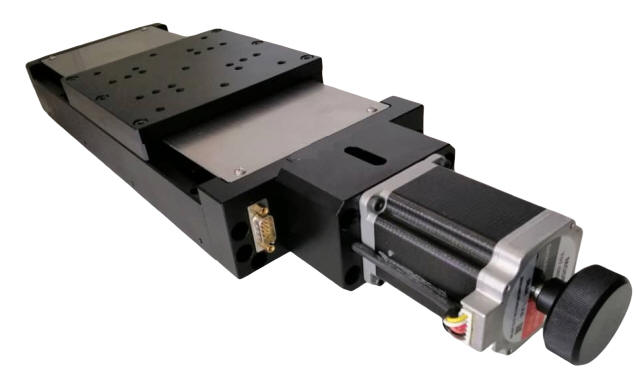

This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 500 mm of travel at a maximum speed of 40 mm per second. The drive mechanism is lead screw.

The bench size is 150 X 150 mm and has a body weight of 8.3 Kg.

The maximum load of this stage table is 50 Kg.

The resolution of 10 μ is achieved with a 10 micro-steps per step stepper motor driver. This linear stage is
also available with a Three Phase Brushless Servo Motor and optical encoder.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage is compatible with OES' line of
Motion Controllers..



Specifications
Type

AQ150-800H

Structure Description

Travel

800 mm

Stage Size 150150 mm
Lead Screw Pitch 5 mm per turn
Travel Guide

High Precision Linear Slide Guide

Two-Phase Stepper Motor (1.8)
Phase Resistance 3.8 Ohm,  Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Pin Assignment and Description

1

+5 VDC

2

CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

3

CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

4

Common

5

Not Connected

6 Motor Phase A+
7 Motor Phase A-
8 Motor Phase B+
9 Motor Phase B-



Body Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 50 kg
Weight 8.3 kg

Typical Accuracy

Resolution 2.10 μ (10 Micro-steps per Step Motor Driver in use)
1.210 μ (20 Micro step Driver in use)
Maximum Speed 40 mm/sec
Repositioning Accuracy 10 μ
Absolute Positional Accuracy 10 μ
Straightness 30 μ
Driving parallelism 20 μ
Backlash 10 μ

Accessories Description

Optical Encoder
Three Phase Brushless Servo Motor (S)
Dustproof Cover (F)


Mechanical Drawing


 Ordering Information

Part No. Description Amount
AQ150-800H-01 Stepper Motor Driven Linear Single-axis Stage, Travel  : 500 mm Click to Get a Quote
AQ150-800H-02 Three Phase Brushless Servo Motor Driven Linear Single-axis Stage, Travel  : 500 mm Click to Get a Quote
