Dual-axis Pitch and Roll Stage

Home > Motorized Pitch and Roll Stages


This dual-axis stage requires a Motion Controller that can be ordered as a complete plug-and-play system with joystick, trackball, and keypad.

Specifications

Type

PR110-10-10

Range of Travel

+/-10 (Roll Axis)
+/-10 (Pitch Axis )

Table Size 65 mm x 65 mm
Gear Ratio 1 (stage) : 352 (motor) (Roll Axis)
 1 (stage) : 352 (motor) (Pitch Axis)
Drive Mechanism Worm Gear
Travel Guide Crossed-roller Guide
Stepper Motor

Typical Phase Resistance 3.8 Ohms,  Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Pin Assignment and Description

1

+5 VDC

2

CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

3

CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

4

Common

5

Not Connected

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-



Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 4.5 kg
Weight 1.5 kg
Maximum Speed 10 /sec
Typical Repeatability +/-4
Typical Positional Accuracy +/-9
Typical Backlash +/-3

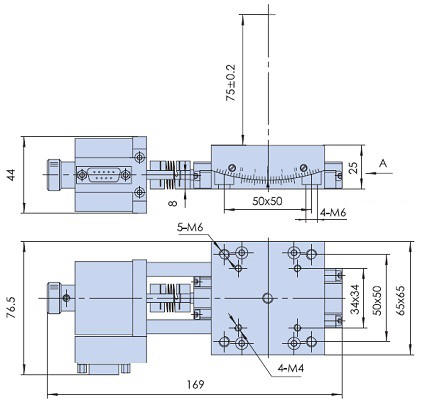

Stepper Motor Driven Mechanical Drawing (Roll Table)


Ordering Information

Part No. Description Amount
PR110-10-10-01 Dual-axis Stepper Motor Driven Linear Pitch and Roll Stage, Table Size 65x65 mm Click to Get a Quote
PR110-10-10-02 Dual-axis Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Pitch and Roll Stage, Table Size 65x65 mm Click to Get a Quote
PR110-10-10-03 Dual-axis DC Servo Motor with Quadrature Incremental Optical Encoder Driven Pitch and Roll Stage, Table Size 65x65 mm Click to Get a Quote
PR110-10-10-04 Dual-axis Stepper Motor Driven Linear Pitch and Roll Stage  with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor, Table Size 65x65 mm Click to Get a Quote
