Hollow Core Motorized Vertical Rotation Stage

Home > Motorized Rotary Stages

Hollow Core Motorized Vertical Rotation Stage, Stage Diameter: 2.322 in (59 mm)

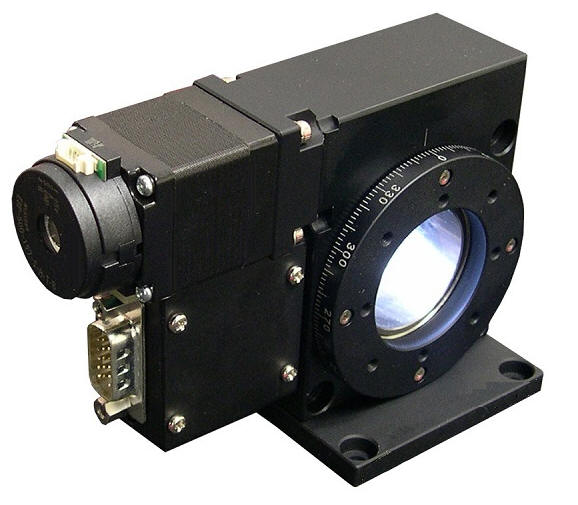

This vertical hollow core motorized rotary stage with an elegant black anodized surface is made of aluminum alloy  .

The vertical plate mounted indicator shows the angle of rotation. The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This 59 mm diameter rotary actuator with a 30 mm diameter hollow core  has a body weight of 0.7 Kg.

The drive mechanism is worm and worm gear. The worm gear ratio is 180:1.

The maximum load of this rotary table is 1 Kg.

The resolution of +/-0.01 degrees   is achieved with a 10 micro-steps per step stepper motor driver.

This motorized stage is capable of continuous spinning.

TThis stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.



Specifications
Type



AR59-AV

M
e
c
h
n
i
c
a
l

s
p
e
c

Table Diameter Size

2.322 in (59 mm)

Range of Travel 360 degrees
Drive Mechanism Worm & Worm Gear
Through Hole Diameter 1.181 in (30 mm)
Lead Type

Deep - Groove Ball Bearing

Reduction Ratio  180:1
Load 1 Kg
Body Weight 0.7 Kg
Material Aluminum Alloy
Surface treatment Black Anodized
Maximum Speed 14 degrees per second


T
y
p
i
c
a
l

A
c
c
u
r
a
c
y



2-phase
resolution
(pulse)
Resolution (Full Step) 0.004 degrees
Micro Stepping(1/10 step) 0.0004 degrees
Single-direction Positioning Precision 0.05 degrees
Repeatability Position Precision +/-0.01 degrees


Electrical Connection

Pin No. Description
Two-Phase Stepper Motor (1.8 degrees )
Typical Phase Resistance 5.6 Ohms, Bi-directional
Typical Phase Current 0.67 Amp

DB-15 Male Connector




Pin No. Description
1 Stepper Motor Stepper Motor Phase A+
2 Stepper Motor Stepper Motor Phase A-
3 Stepper Motor Stepper Motor Phase B+
4 Stepper Motor Stepper Motor Phase B-
5 Not Connected
6 Not Connected
7 Not Connected
8 Not Connected
9

+5 VDC Power Input

10 Home Switch, Open Collector, Middle of Stroke, Width 4.5 mm,  Needs Pull up Resistor, 1 KOhm to +5 VDC
11

+5 VDC Power Input Common, Return, Ground

6 Not Connected
7 Not Connected
8 Not Connected
9 Not Connected
10 Not Connected
11 Not Connected
12 Not Connected
13 Not Connected
14 Not Connected
15 Not Connected

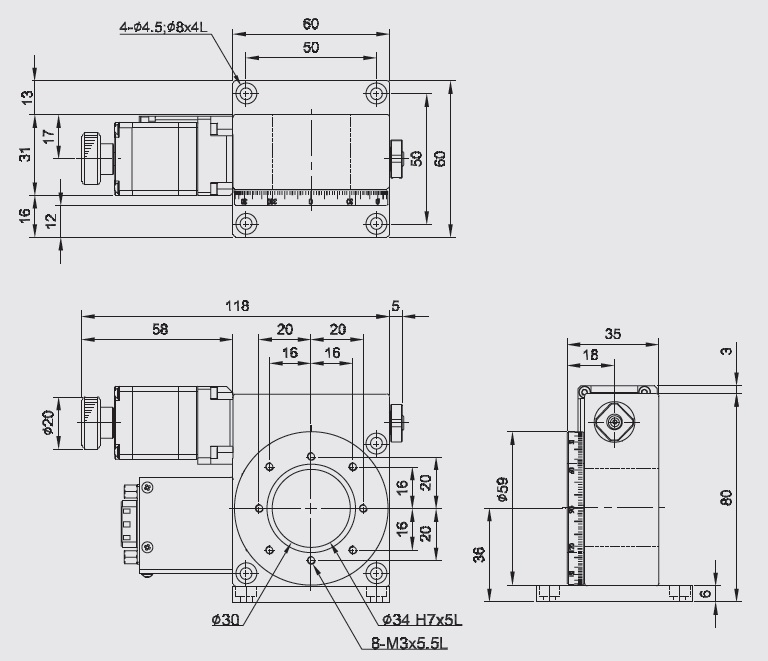

Stepper Motor Driven Mechanical Drawing

Mechanical Drawing of Hollow Core Motorized Vertical Rotation Stage, Stage Diameter: 2.322 in (59 mm)

 Ordering Information

Part No. Description Amount
AR59-AV-01 Stepper Motor Driven Hollow Core Vertical Rotation Stage, Diameter: 59 mm Click to Get a Quote
AR59-AV-04 Stepper Motor Driven Hollow Core Vertical Rotation with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor, Stage Diameter: 59 mm Click to Get a Quote
