Hollow Core Motorized Rotary Stage

Home > Motorized Rotary Stages

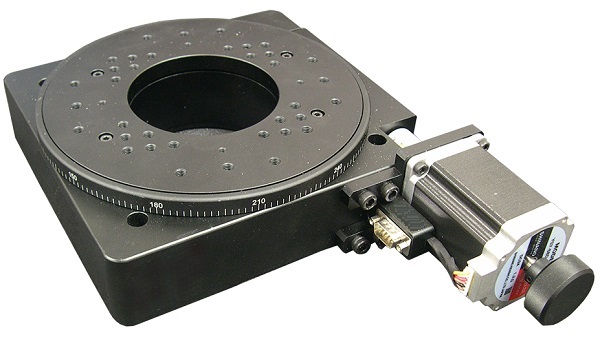

This hollow core motorized rotary stage is made of aluminum alloy with an elegant black anodized surface.

The drive mechanism is worm and worm gear. The worm gear ratio is 180:1.

It provides 360 of continuous rotation.

The maximum load of this rotary table is 55 Kg.

This 100 mm diameter rotary actuator has a body weight of 7.9 Kg.

The resolution of 0.001  is achieved with a 10 micro-steps per step stepper motor driver. This rotation stage is also available with a servo motor and optical encoder.

The top plate mounted indicator shows the angle of rotation.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This motorized stage is capable of continuous spinning.

This stage is compatible with OES' line of Motion Controllers..




Structure Description

Range of Travel


Stage Diameter 200 mm
Transmission Ratio 180:1
Drive Mechanism

Worm Gear

Travel Guide Bearing
Stepper Motor 2 Phase Stepper Motor
Phase Resistance 2.5 Ohm
Typical Phase Current 2 Amps
DB-9 Male Connector
Pin Assignment and Description
1,2,3,4,5 Not Connected
6 Motor Phase A+
7 Motor Phase A-
8 Motor Phase B+
9 Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 55 kg
Weight 7.9 kg

Typical Accuracy

Resolution 0.001
(10 Micro-Steps per step Driver in use)
Maximum Speed with Stepper Motor 8 /sec
Maximum Speed with Servo Motor 120 /sec
Repeatability 0.005
Positional Accuracy 0.001
Surface Roundness 15 μ
Backlash 0.005
Transmission Deviation 5 μ
Parallelism 100 μ

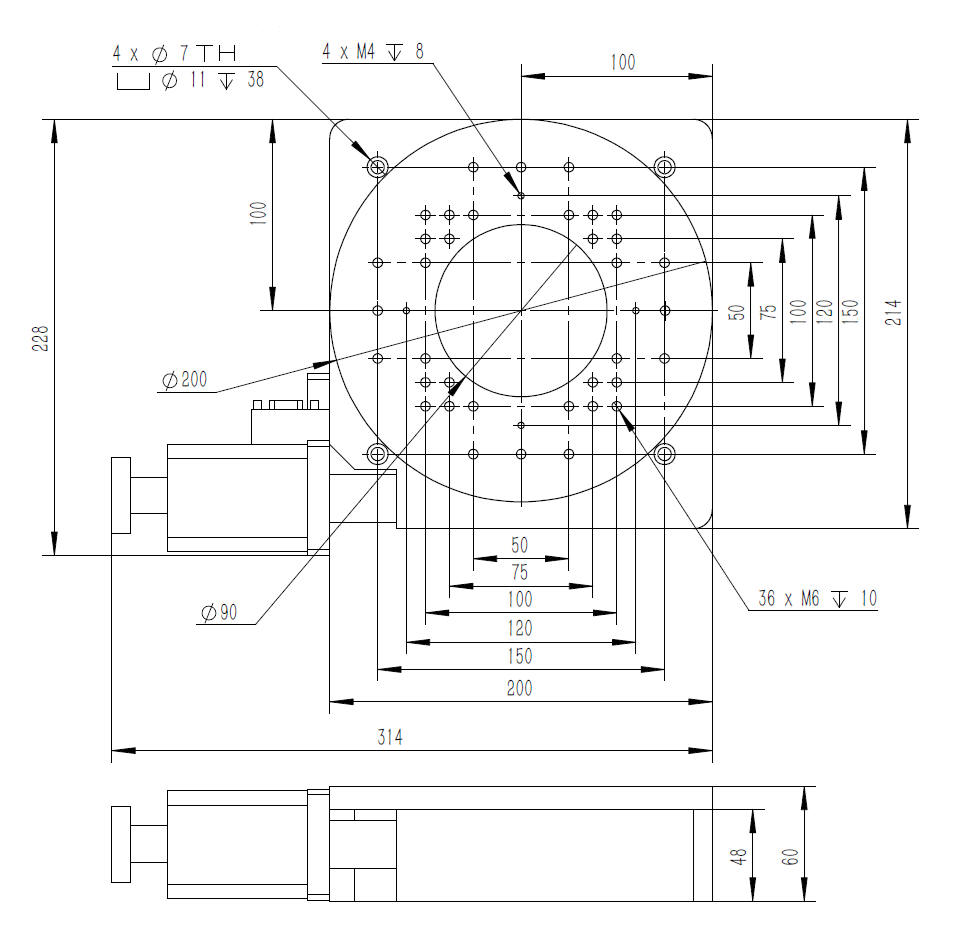

Mechanical Drawing

 Ordering Information

Part No. Description Amount
AY110-200-01 Stepper Motor Driven Motorized Rotary Stage, Stage Diameter: 200 mm, Load Capacity: 55 kg Click to Get a Quote
AY110-200-02 DC Servo Motor Driven Motorized Rotary Stage, Stage Diameter: 200 mm, Load Capacity: 55 kg Click to Get a Quote
