High Performance Solenoid Driver, Pick and Drop Module


Wiring Diagram


Similar Solenoid Controller and Driver Products

Pick and Hold Module
Proportional (PWM) Module
Closed Loop Solenoid Position Control Module
Pick and Drop Module
Load On-Off Power Cycling Module
Dual Proportional Valve Controller
Serially Controlled Solenoid Driver
Solenoid Control System
Solenoid Controller Module
Related Products
Solenoid Commander Card
Power Supplies
Solenoids
Features
  • Low Cost

  • Small Size

  • Low Weight

  • Highly Efficient

  • Stand Alone

  • Microcomputer Based, May Be Re-programmed for Your Application

  • Highly Reliable

  • Pulse Width Modulated (PWM)

  • Single Supply, from +9 VDC to +50 VDC

  • High Supply Voltage, +50 VDC

  • High Output Current, 15 Amps Peak, 4 Amps RMS

  • Incorporates Flyback (Snubber, Freewheeling) Diode per Output Device

  • Available with High Side Drivers

  • QUANTITIES AVAILABLE IN STOCK


Typical Applications
  • Solenoids

  • Valves

  • Relays

  • Actuators

  • Voice Coil Actuators

  • DC Motors

  • Hydraulics

  • Electromagnets

  • LEDs

General Specifications

  • Supply Voltage, +9 to +50 VDC

  • Peak Current, 15 Amp

  • Average Current, 4 Amp


The Pick and Drop Driver Module applies a single pulse to the device, then drops the supply voltage to zero.

This is done by applying a signal to the trigger input of the module.

The trigger voltage could be a TTL / CMOS compatible signal or any voltage between 3.0 VDC and the DC power source supply voltage .

The pick time is set using an onboard potentiometer and can be adjusted up to one minute.

The OES' Solenoid Controller Card could be used to control up to sixteen Pick and Drop Modules.

A DIN-rail mount bracket is available for this product.



Performance Specifications

Parameter

Min

Typical

Max

Units

Supply Voltage

9



50

VDC


Peak Current

15

Amp

Average Current

4

Amp

Command Range

3



50

VDC

Operating Temperature

0



50

Deg C

Hold Time

5



60,000

msec

80 VDC version is also available.

Performance Table

Part No. Input Signal Pick Voltage Pick Time Drop Voltage
PDD-xx Pulse, 3-50 VDC Equal to Power Supply Voltage Variable, Set by a Trim Potentiometer, 2 milliseconds and one minute. Zero

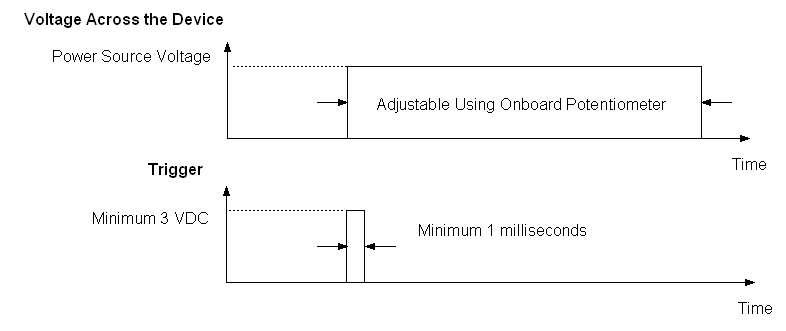

Timing Diagram













Mechanical Specifications
Mounting Pattern Four 6-32 Screws, 0.15" Diameter (3.8 mm)
Dimensions 3.00” W, 3.00” D, 0.85” H (76.2 mm, 76.2 mm, 21.5 mm)

Ordering Information

Part No. Description Amount
PDD-01 Single-device High Performance Pick and Drop Solenoid Driver Module, +50 VDC Version, Low Side Driver Click to Get a Quote
PDD-02 Single-device High Performance Pick and Drop Solenoid Driver Module for Latching Solenoids, +50 VDC Version, Low Side Driver Click to Get a Quote
PDD-01-HC Single-device High Performance Pick and Drop Solenoid Driver Module, High Current Version, Low Side Driver Click to Get a Quote
PDD-01-HV Single-device High Performance Pick and Drop Solenoid Driver Module, +80 VDC Version, Low Side Driver Click to Get a Quote
SCSD-01 Single-device Serially Controlled Solenoid Driver Click to Get a Quote
SCSD-02 Dual-device Serially Controlled Solenoid Driver Click to Get a Quote

PH-ET-05   Click to Get a Quote
