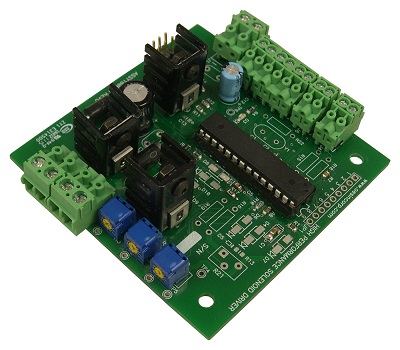

Motor Driver,  PWM Module

Data Sheet in PDF
Related Products
USB Control Card
Power Supplies
Features
  • Low Cost

  • Small Size

  • Low Weight

  • High Efficiency

  • Microcomputer Based

  • Very High Reliability

  • Pulse Width Modulated (PWM)

  • Adjustable Maximum Pulse Width Using Onboard Trim Potentiometer

  • Single Supply, from +9 VDC to +50 VDC

  • High Supply Voltage, +50 VDC

  • High Output Current, 50 Amps Peak, 4 Amps RMS

  • QUANTITIES AVAILABLE IN STOCK


Typical Applications
  • Motors

  • Valves

  • Relays

  • Pumps

  • Actuators

  • Voice Coil Actuators

  • DC Motors

  • Hydraulics

  • Electromagnets

  • LEDs

General Specifications

  • Supply Voltage, +9 to +50 VDC

  • Peak Current, 50 Amp

  • Average Current, 4 Amp



The PWM Module is designed to enable the user to vary the voltage across a motor or other devices. The PWM output voltage is proportional to the input control voltage. The maximum voltage applied to the device could be adjusted using an onboard  potentiometer.

Performance Specifications

Parameter

Min

Typical

Max

Units

Supply Voltage

9



50

VDC

Peak Current





15

A

Average Current





4

A

Input Control - Voltage Controlled

0



5

VDC

Input Control - Current Controlled

4



20

mA

Operating Temperature  0   50 Deg C

Performance Table

Part No. Input Signal Hold Voltage Hold Time
PWM-xx Analog Voltage, 0-5 VDC or 4-20 milliamps Proportional to Input Indefinite

Input - Output Curve

Mechanical Specifications

Mounting Pattern Four 6-32 Screws, 0.15" Diameter (3.8 mm)
Dimensions 3.00” W, 3.00” D, 0.85” H (76.2 mm, 76.2 mm, 21.5 mm)

Ordering Information



Part No. Description Amount
PWM-05 Single-device  PWM Motor Driver Module, 0-5 VDC Input Signal Click to Get a Quote
PWM-06 Two-device  PWM Motor Driver Module, 0-5 VDC Input Signal Click to Get a Quote
PWM-07 Single-device  PWM Motor Driver Module, 4-20 milliamps Input Signal Click to Get a Quote
PWM-08 Two-device  PWM Motor Driver Module, 4-20 milliamps Input Signal Click to Get a Quote
PWM-05-HV Single-device High Performance PWM Motor Driver Module, 0-5 VDC Input Signal, High Current Version Click to Get a Quote
PWM-06-HV Two-device High Performance PWM Motor Driver Module, 0-5 VDC Input Signal, +80 VDC Version Click to Get a Quote
PWM-07-HV Single-device High Performance PWM Motor Driver Module, 4-20 milliamps Input Signal, +80 VDC Version Click to Get a Quote
PWM-08-HV Two-device High Performance PWM Motor Driver Module, 4-20 milliamps Input Signal, +80 VDC Version Click to Get a Quote
PWM-14 Single-device High Performance PWM Solenoid Driver Module, 0-10 VDC Input Signal, +50 VDC Version Click to Get a Quote
PWM-15 Single-device High Performance PWM Solenoid Driver Module, 0-10 VDC Input Signal, +50 VDC Version Click to Get a Quote
