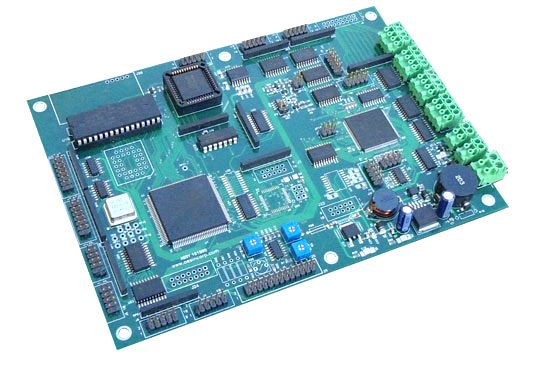

RS232 Control Card

More Info...
Request for Specifications





Features
  • Low Cost

  • Low Power Consumption

  • Host Controlled or Stand-alone

  • Easy Set-up

  • Optional Four Channels of Digital-to-Analog Converter (DAC) Output

  • Three Channels of Analog-to-Digital Converter (ADC) Input

  • Sixteen Digital Input / Output ( I/O ) Lines

  • Four Variable Frequency Pulse Generators

  • One RS-232 Serial Asynchronous Communications Channel

  • Programmable Timers

  • Counters

  • Non-Volatile Memory

  • Precision Power-on and Watchdog Timer Circuitry

  • LED Power Indicator

  • Easy Connection to Sensors and Switches

  • 8-bit Data and Address Bus Expansion Port

  • Quadrature Encoder Feedback


Software
  • Easy System Setup and Evaluation

  • Menu Driven

  • Free Software Included


This card is an easy-to-use, plug-and-play and cost effective solution for control applications. It may be used as a stand-alone unit or may be commanded by an external device.

This series supports 16 TTL / CMOS compatible inputs, 16 TTL / CMOS compatible outputs, 3 analog inputs, and up to five optical encoder inputs. The command port is provided for stand-alone operation.

The powerful programming instructions include system configuration, data flow, program flow commands, 32-bit logical and mathematical operations, and other miscellaneous instructions.

1) Stand-alone
In this mode, the controller does not need an external device such as a PC to operate. The controller is programmed in a simple programming language. The code is developed, downloaded to the controller, run and saved in the controller's non-volatile memory using the supplied Integrated Development Environment (IDE) software.

2) Externally Controlled
In this mode, the external host such as a PC, micro-controller or PLC sends a series of commands to the controller via the RS-232 serial port. The controller processes and performs the incoming commands and responds with proper messages.

3) Control Panel
The supplied user friendly Control Panel software allows the user to set-up the module quickly.


Communication Interface
  • RS-232 Interface


Software

  • Easy Setup and Evaluation


Mechanical

  • Size: 5.40 " (137 mm) X 7.5 " (191 mm)


Power Requirement

  • +5 VDC Or +7.5 to +40 VDC




General Purpose Digital Input / Output
  • 16 TTL / CMOS Inputs, Expandable to 32

  • 16 TTL / CMOS Outputs, Expandable to 32

  • Two 2-Phase Quadrature Signals, Expandable to 5


General Purpose Analog Input / Output

  • 3 Inputs, Expandable to 6
    Range: 0 - +5 VDC
    Resolution: 8-bit

  • 4 Outputs
    Range: 0 - +5 VDC
    Resolution: 8-bit


Ordering Information

Part No. Description Amount
RS232-CC RS232 Control Card Click to Get a Quote
