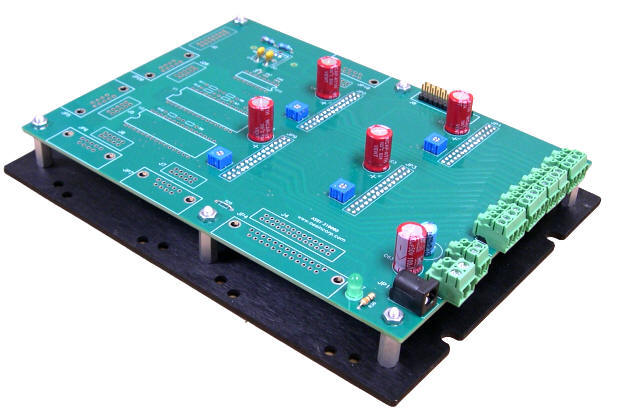

Stepper Motor Driver Module

Related Products

Rotary Stepper Motors
Linear Stepper Motors
Linear and Rotary Actuator
Power Supplies
Features
  • Zero To 3 Amps Phase Current

  • +15 VDC to +50 VDC Power Supply

  • Running Motor Current Is Easily Set by Trim Potentiometers

  • 10 Micro-steps per Step Resolution

  • Up to 4 Axes

  • Auto Current Reduction

  • 300 KHz Max Step Rate

  • 3 W Dissipation at 3 A per Phase

  • 20KHz Master Oscillator PWM

  • 0C To 70C Operating Temperature

  • LED Power Indicator

  • Anodized Aluminum Base

  • Modular 2-Piece Motor Connector






The SMDM series is a high performance, cost effective stepper motor driver module to implement intelligent stepper motor control.
ELECTRICAL SPECIFICATIONS

Supply Voltage

+15 to +50 VDC

Phase Current

Zero  to 3.0 Amps

Auto Current Reduction

75% of Set Current, 1 Second After Last Step Pulse

Step Frequency

0 to 300 kHz



ENVIRONMENT

Heat Sink Temperature  0 oC to 70 oC

Ambient Temperature

0 oC to 50 oC

Storage Temperature

-40 oC to 125 oC

Humidity

0 - 95% with no condensation





Ordering Information

Part No. Description Amount
SMDM-1-STPR-01 Single-axis Stepper Motor Driver Module Click to Get a Quote
SMDM-2-STPR-01 Two-axis Stepper Motor Driver Module Click to Get a Quote
SMDM-3-STPR-01 Three-axis Stepper Motor Driver Module Click to Get a Quote
SMDM-4-STPR-01 Four-axis Stepper Motor Driver Module Click to Get a Quote
