Features
  • Low Cost

  • 12 - 24 VDC Input Power

  • High Output Current, 2.5 Amps Peak

  • No Minimum Inductance

  • Programmable Current Adjustment

  • Step Frequency up to 5 MHz

  • 25 KHz Chopper Drive

  • Status Indicator - Axis ON

  • Operating Temperature, 0 - 70 C at
    Heatsink



Features Cnt'd
  • Crystal Controlled Clock

  • Over Temperature Protection

  • Automatic Current Reduction, 0.5 Sec after Last Step Input

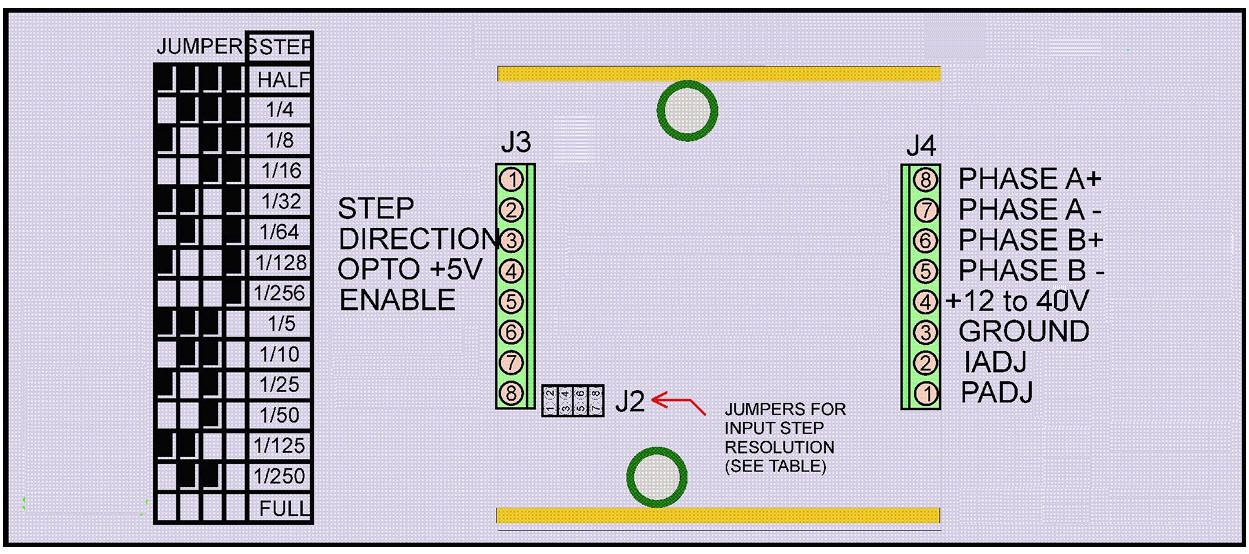

  • 4 Selectable Resolutions

  • Micro-step Resolutions: 1/1, 1/2, 1/4, 1/8,

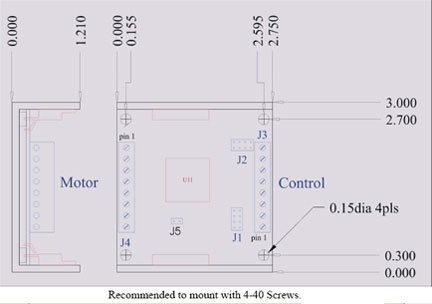

  • Extremely Small Size, 2.75"(69.9 mm) X 3.00" (76.2 mm) X 1.20" (30.5 mm)

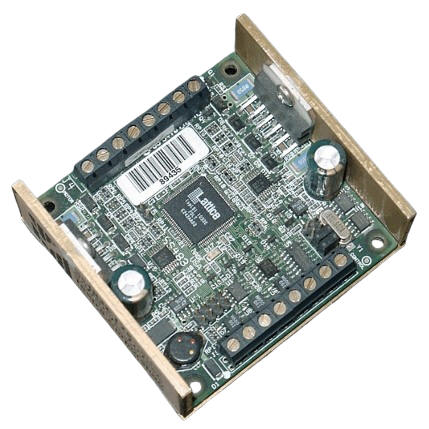

The STPMDRV-243 is a high performance, low cost micro-stepping driver that incorporates advanced surface mount and ASIC technology. The STPMDRV-243 is small, easy to interface and use, yet powerful enough to handle the most demanding applications.

The STPMDRV-243 has 4 different resolutions built into the driver. The development of proprietary circuits has minimized ripple current while maintaining a 25 KHz chopping rate. This prevents additional motor heating that is common with drivers requiring higher chopping rates

The low inductance stepper motors can be used to improve high speed performance and system efficiency.

ELECTRICAL SPECIFICATIONS

Supply Voltage

+12 to +24 VDC

Phase Current

0.5 to 2.5 Amps

Auto Current Reduction

Potentiometer Programmable, 0.5 Seconds After Last Step Pulse

Step Frequency

0 to 500 KHz

ENVIRONMENT

Heat Sink Temperature  0 oC to 70 oC

Ambient Temperature

0 oC to 50 oC

Storage Temperature

-40 oC to 125 oC

Humidity

0 - 95% with no condensation

Ordering Information

Part No. Description Amount
STPMDRV-2403 Stepper Motor Driver Click to Get a Quote
