Joystick and Trackball Interfaced Stepper motor controller Card
SMCM Series

Request for More Info

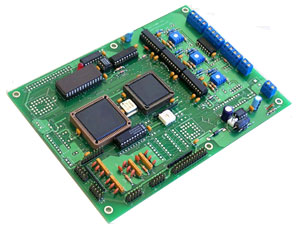

This stepper motor control card is capable of moving a group of motors via controlling the movement of a joystick or trackball. The speed of the motor is proportional to the tilt angle of the joystick.

These series are complete multi-axis, multi-speed, stand-alone, easy-to-use, plug-and-play, and low cost for manual stepper motor control applications . They can replace or upgrade manual systems, motorizing them with precision joystick and/or trackball control.

Controlling devices include analog joystick,  trackball, two-phase quadrature signals,  digital potentiometer, DC voltage, and external step and direction signals.


NO PROGRAMMING IS NECESSARY.

Features
  • Compact

  • Multi-axis

  • Stand-alone

  • Plug-and-Play

  • Built-in Self Test

  • Three Speed Ranges, Fast, Medium, and Slow Mode more...

  • Sixteen Sets of Selectable Speed Ranges more...

  • Proportional Speed Control

  • Positive and Negative Limit Switches per Axis
  • Zero Adjustment of Joystick on Power-up
  • Pre-wired  Joystick, Trackball available
  • Quadrature Encoder Feedback
  • Optional Trackball Interface
  • Optional Step and Direction Inputs





TECHNICAL DATA

Controlling Devices

  • Analog Joystick
  • Trackball (Optional)
  • Two-phase Quadrature Signals (Optional)
  • DC voltage
  • External Step and Direction Signals
  • Digital Potentiometer (Optional)

Supported No. of Axes

  • Up to 3 Axes

Joystick

  • Single Handed 2 or 3-axis Control
  • Speed Selection Keys
  • Long Life

Trackball

  • Precision Positioning
  • Speed Selection Keys
  • Long Life

Dedicated Inputs

  • Positive and Negative Limit Switches per Axis
  • Home Switch per Axis
  • Analog Joystick per Axis
  • Joystick Fast, Medium, and Slow Speed Selection Keys
  • Two 2-Phase Quadrature Signals or Trackball (Optional)
  • Trackball Fast, Slow and Z-Select Speed Selection Keys (Optional)

Dedicated Outputs

  • Fault LED Output

Power Requirement

  • +5 VDC Or +7.5 to +40 VDC

Ordering Information

Part No. Description Amount
SMCM-2 Two-axis  Joystick Interfaced Stepper motor controller Click to Get a Quote
SMCM-3 Three-axis  Joystick Interfaced Stepper motor controller Click to Get a Quote
JOY-3-01
Three-axis Pre-wired Joystick with 3 Speed Selection Keys Click to Get a Quote
JOY-2-01
Two-axis Pre-wired Joystick with 3 Speed Selection Keys Click to Get a Quote
TRKBL
Pre-wired Trackball Click to Get a Quote
