Linear Unregulated
Power Supply
PWRSPLY-48-8.3 |
This power supply includes a transformer and a rectifier card. The
fuse and the power switch are not included and must be provided.
Some wiring and assembly is required.
The maximum available current is 10 Amps.
|
| Part No. |
Power (Watt) |
Transformer
|
Condition |
Amount |
| Each Secondary |
Secondaries Connected in Parallel |
Secondaries Connected in Series |
Output Voltage
(VDC) |
Current
(Amp) |
Output Voltage
(VDC) |
Current
(Amp) |
Output Voltage (VDC) |
Current
(Amp) |
| PWRSPLY-48-8.3
Wiring
Diagram |
400 |
+38
|
0
|
+38
|
0
|
+76
|
0
|
No Load |
Click to Get a Quote |
+24
|
8.3
|
- |
- |
+48
|
8.3
|
Full Load |
|
Input Voltage |
115 VAC
230 VAC |
|
Input Frequency |
50 - 60 Hz |
Add $50.00 for optional low voltage output. This output voltage is
less than +40 VDC at 3 Watts. This output may be used to power the
OES controller card.
Please add -LV to the part number.
All values are typical at 25
oC. |
 |

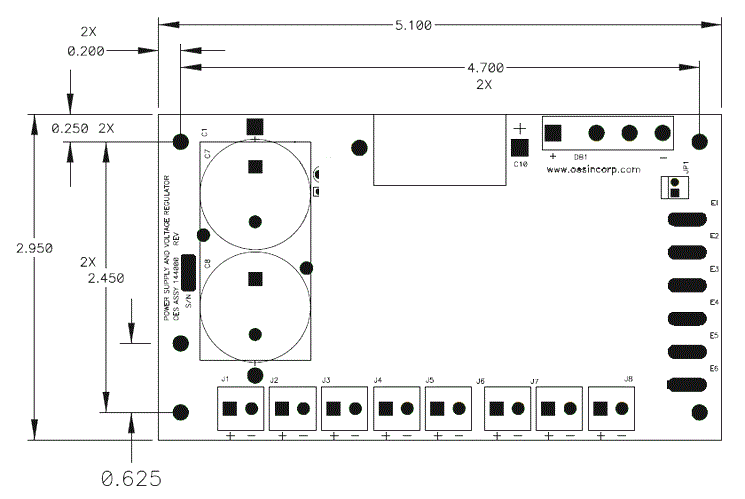

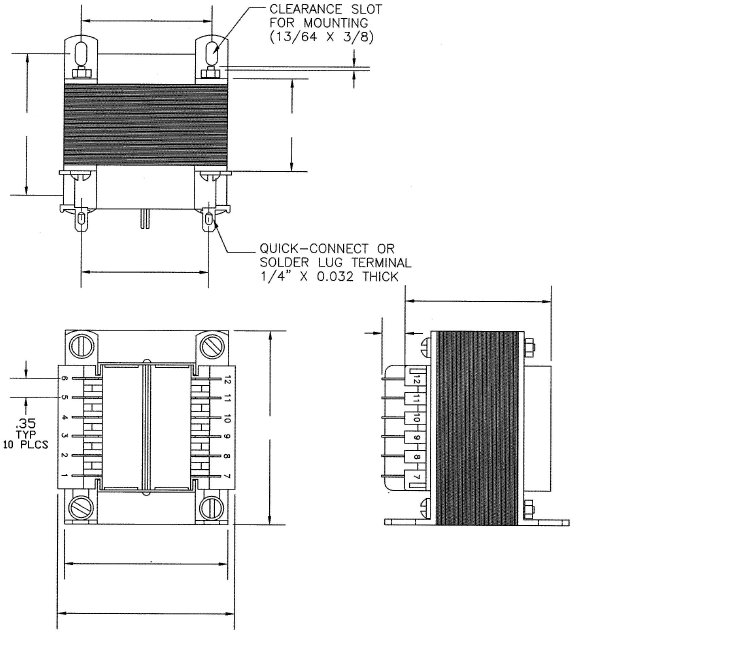

Mounting
Hole Diameter = 0.156"
Maximum Height = 1.7"
All Dimensions in inch. |
|
