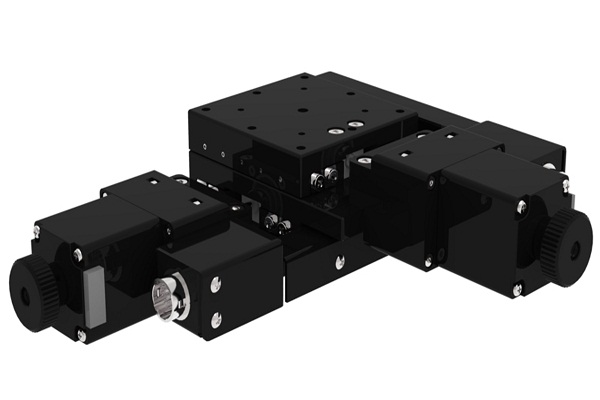

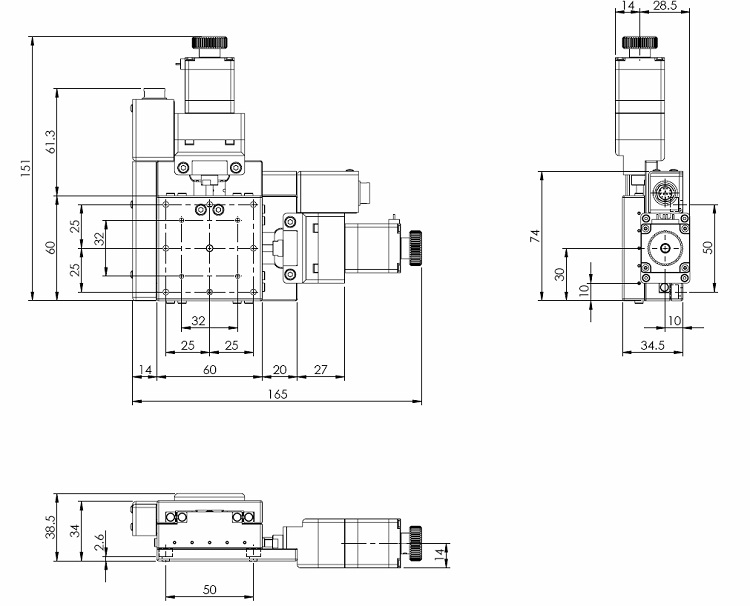

Specifications
| Type |
AYL6020 |
|
M
e
c
h
a
n
i
c
a
l
S
p
e
c |
Table Size |
60 X 60 mm |
| Range of Travel |
20 mm |
| Travel Guide |
Ball screw Φ4, lead 0.5 mm |
| Runway |
Cross-roller lead-type |
| Load |
9.8 Kg |
| Body Weight |
0.8 Kg |
| Material |
Aluminum Alloy |
| Surface treatment |
Black Anodized |
|
T
y
p
i
c
a
l
P
r
e
c
i
s
i
o
n
S
p
e
c |
2-phase
resolution
(pulse) |
Resolution |
|
2.5 micron / 1.25 micron |
| Micro Stepping(1/5 step) |
0.5 micron |
| Moment Parallelism |
10 micron |
| Moment straightness |
3 micron |
| Single-direction positioning precision |
+/- 0.05 micron |
| Reciprocating position precision |
+/- 0.003 micron |
| Maximum Speed |
12.5 mm/ sec [5KHz] |
| Idle Run |
1 micron |
| Parallelism |
20 micron |
|
