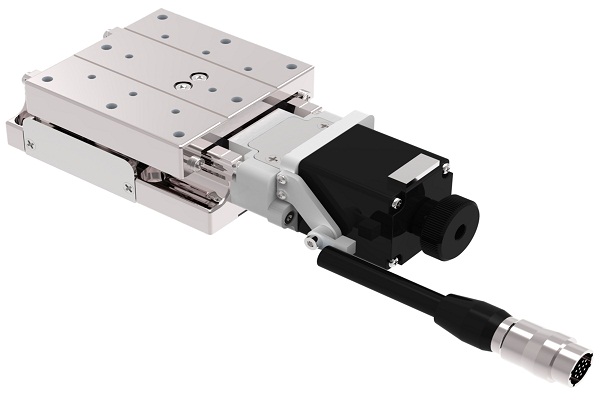

Motorized
Linear Single-axis Stage
|
 |
Home >
Motorized Linear Stages |
 |
|
Specifications
|
Type |
CXS6030 |
|
M
e
c
h
n
i
c
a
l
s
p
e
c |
Table Size |
60 X 60 mm |
| Range of Travel |
30 mm |
| Travel Guide |
Ball screw Φ6, lead 1 mm |
| Runway |
Linear roller lead-type |
| Load |
5 Kg |
| Body Weight |
0.9 Kg |
| Material |
Stainless Steel |
| Surface treatment |
Nickel Electroplating |
|
P
r
e
c
i
s
i
o
n
S
p
e
c |
2-phase
resolution
(pulse) |
| Resolution |
5 micron / 2.5 micron |
| Micro Stepping(1/5 step) |
1 micron |
| Movement Parallelism |
10 micron |
| Movement straightness |
3 micron |
| Single-direction positioning precision |
5 micron |
| Reciprocating positioning precision |
+/-0.5 micron |
| Maximum speed |
25 mm/sec [5 KHz] |
| Idle Run |
1 micron |
| Parallelism |
15 micron |
|
|

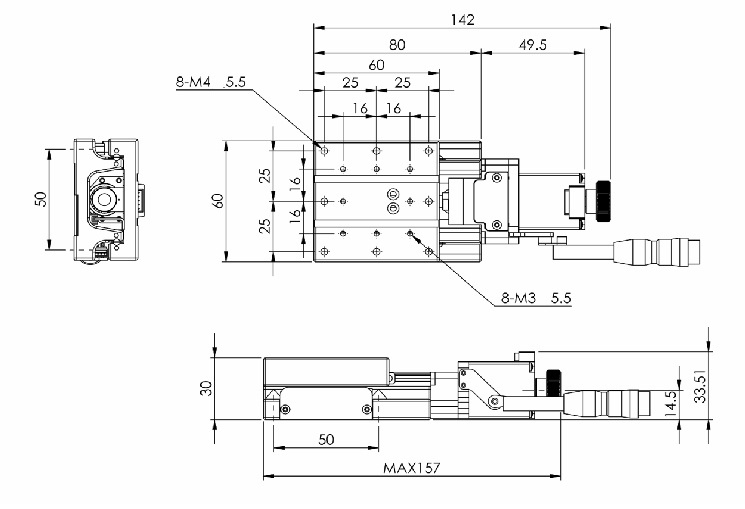

Stepper Motor Driven Mechanical Drawing
|
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
CXS6020 |
Motorized Linear Single-axis Stage, Table Size 60 x 60 mm |
Click to Get a Quote |
|
CXS6030 |
Motorized Linear
Stainless Steel Single-axis Stage, Table Size 60 x 60 mm |
Click to Get a Quote |
|
|
