Motorized Two-axis
Pan-Tilt Stage, 200 mm Diameter |
|
Home >
Assorted Motorized
Pan-Tilt Actuators |
|
 |
 |
The PT200 Pan-Tilt Stage is a combination of two 200 mm (7.874 in.) rotary stages. set at a 90 degrees angle to each other. The rotary stages of each Pan-Tilt stage features a high repeatability of 0.005 degrees (18 arc-sec), a positional accuracy of 0.005 degrees (18 arc-sec), and a resolution of 0.001 degrees (3.6 arc-sec) when 10 Micro-steps per Step Motor Driver is in use. These Pan (horizontal table)-Tilt (vertical table) stages are deal for: Scanning, testing, inspection, assembly, positioning, laser and micro machining, pointing optics and cameras, and other applications.
The pan and tilt axes on both stages have precision V-grove and crossed roller travel guides and are driven by a worm gear with just of 0.005 degrees (18 arc-sec) of backlash.
Each axis is driven by a standard bi-directional stepper motor with a knob for manual adjustments and each rotary axis has a vernier scale for setup. The knob on each motor can be replaced with an optical encoder for position verification. Travel speed of each axis is 12 degrees per second with the stepper motors. For higher speeds and closed loop operation, servo motors are also available.
The PT200 Pan-Tilt Stages can be ordered as complete plug-and-play systems with a
Motion Controllers
, joystick, trackball or keypad. |
|
Specifications
| Type |
PT200 |
|
Structure
Description |
Range of Travel |
360°
Continuous
on Tilt Axis |
| Table Size |
Diameter: 7.874 in (200 mm)
|
| Gear Ratio |
180:1 |
| Actuator Type |
Worm and Worm Gear |
| Travel Guide |
Precision V-groove & Crossed Roller |
|
DB-9 Male Connector
 |
|
Two-Phase Stepper Motor |
|
Typical Phase Resistance
|
2.5 Ohms, Bi-directional |
| Typical Phase Current |
2 Amps |
| |
|
Pin Assignment and Description |
| 1 |
+5 VDC for the HOME Sensor |
| 2 |
Not Connected
|
| 3 |
Not Connected |
| 4 |
Return for+5 VDC |
|
5 |
Home Switch
Open Collector
Normally Open
Needs Pull up Resistor (typically 1000 Ohms) |
|
6 |
Stepper Motor Phase A+ |
| 7 |
Stepper Motor Phase A- |
| 8 |
Stepper Motor Phase B+ |
| 9 |
Stepper Motor Phase B- |
|
| |
|
| Base Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Load Capacity |
25 kg (55 lb) |
| Weight |
19.5 kg (42.9 lb) |
Resolution |
0.001° = 3.6 arc-sec (10 Micro-steps per Step Motor Driver in use) |
|
Maximum Speed of the Pan axis with Stepper Motor |
12 °/sec |
|
Maximum Speed of the Tilt Axis with Stepper Motor |
12 °/sec |
|
Maximum Speed of the Pan Axis with Servo Motor |
90
°/sec |
|
Maximum Speed of the Tilt Axis with Servo Motor |
90
°/sec |
|
Typical Accuracy
|
|
Positional Accuracy |
0.05° = 180 arc-sec |
|
Repeatability |
+/- 0.01° = 36 arc-sec |
|
|

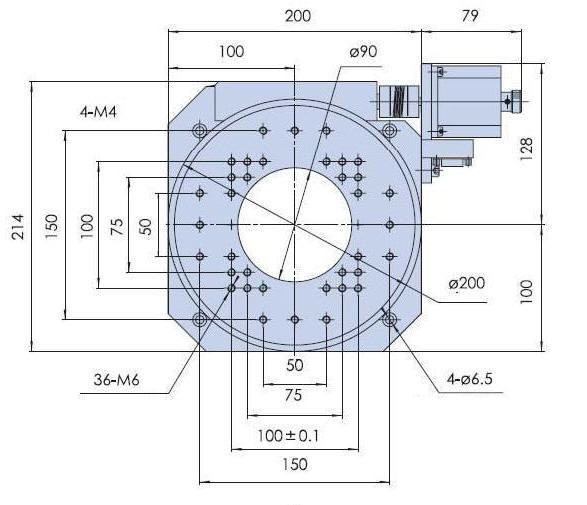

Tilt-axis
Stepper Motor Driven Mechanical Drawing
|
Ordering Information
|
Part No. |
Description |
Amount |
|
PT200-01 |
Stepper Motor
Driven Two-axis Pan-Tilt
Stage, 200 mm diameter,
Load Capacity: 25 kg |
Click to Get a Quote
|
|
PT200-02 |
Three Phase Brushless Servo
Motor with Quadrature
Incremental Optical Encoder
Driven Pan-Tilt Stage,
200 mm diameter,
Load Capacity: 25 kg |
Click to Get a Quote |
|
PT200-03 |
Single
Phase
DC Servo Motor
with Quadrature Incremental Optical Encoder Driven Pan-Tilt Stage, Stage Diameter: 200 mm, Load Capacity:
25 kg |
Click to Get a Quote |
|
PT200-04 |
Stepper Motor
Driven Two-axis Pan-Tilt
Stage
with 500 Cycle per
Revolution
Quadrature Optical Encoder, 200 mm diameter,
Load Capacity: 25 kg |
Click to Get a Quote
|
|
|
|
