Stepper Motor,
Size 23, 240 oz-in, 200 Steps per Revolution
|
|
Model
|
Holding Torque |
Current per Phase |
Voltage |
Resistance per Phase |
Inductance per Phase
|
Rotor
Inertia
|
|
oz-in
N-m
|
Amp |
Volts |
Ohms |
mH |
oz-in2
Kg-m2
|
|
STPM-23-200-240-W
|
240
1.75
|
|
2.80
|
3.16
|
1.13
|
13.6
|
2.6
480 x 10-7
|
|

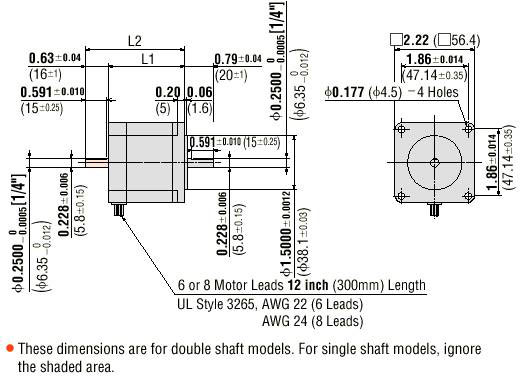

Dimensions
|
|
L1 = 2.99“ (76 mm)
L2 = 3.62” (92 mm)
Weight = 2.2 lb (1.0 Kg)
|

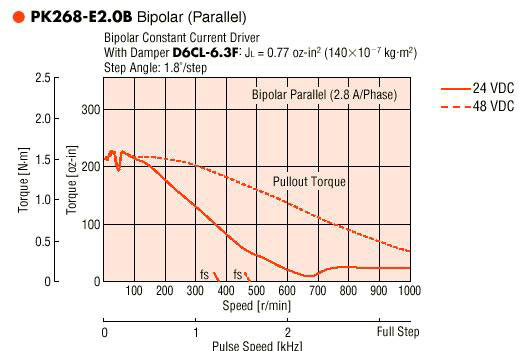

Speed Vs. Torque Characteristics
|
|
|
|
|
